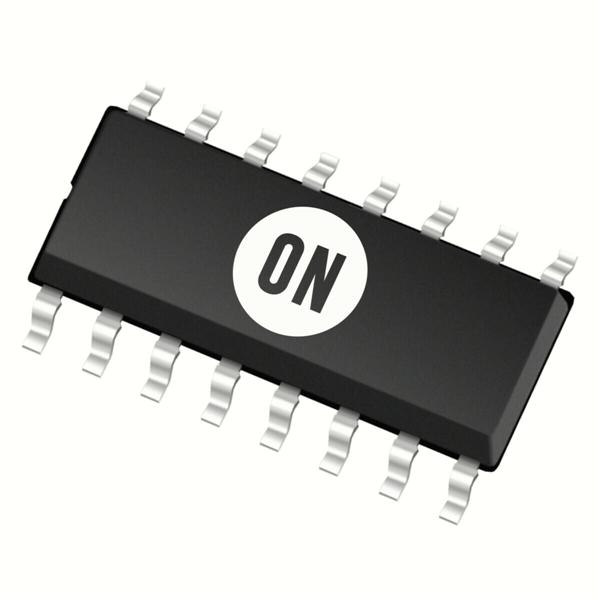

ON SEMICONDUCTOR MC74HC139ANG 芯片, 74HC CMOS逻辑器件
Safety is important to allow for products to safely fail, implement this from to decode multiplexed or non-binary data. This decoder has an operating temperature range of -55 °C to 125 °C. This product comes in rail packaging to keep individual parts separated and protected. This inverting device has a typical operating supply voltage of 2.5|3.3|5 V. Its minimum operating supply voltage of 2 V, while its maximum is 6 V.
电源电压DC 2.00V min
工作电压 2V ~ 6V
输出接口数 8
触点类型 DP4T
供电电流 160 μA
电路数 2
针脚数 16
位数 2
逻辑门个数 1
输入数 2
工作温度Max 125 ℃
工作温度Min -55 ℃
电源电压 2V ~ 6V
电源电压Max 6 V
电源电压Min 2 V
安装方式 Through Hole
引脚数 16
封装 DIP-16
长度 19.55 mm
宽度 6.85 mm
高度 3.43 mm
封装 DIP-16
工作温度 -55℃ ~ 125℃
产品生命周期 Unknown
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MC74HC139ANG ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MC74HC139ADG 安森美 | 完全替代 | MC74HC139ANG和MC74HC139ADG的区别 |
MC74HC138ANG 安森美 | 类似代替 | MC74HC139ANG和MC74HC138ANG的区别 |
CD74HC138E 德州仪器 | 功能相似 | MC74HC139ANG和CD74HC138E的区别 |
