22nF ±20% 50V X7R
0.022µF ±20% 50V Ceramic Capacitor X7R 2-DIP
立创商城:
22nF ±20% 50V
得捷:
CAP CER 0.022UF 50V X7R 2-DIP
艾睿:

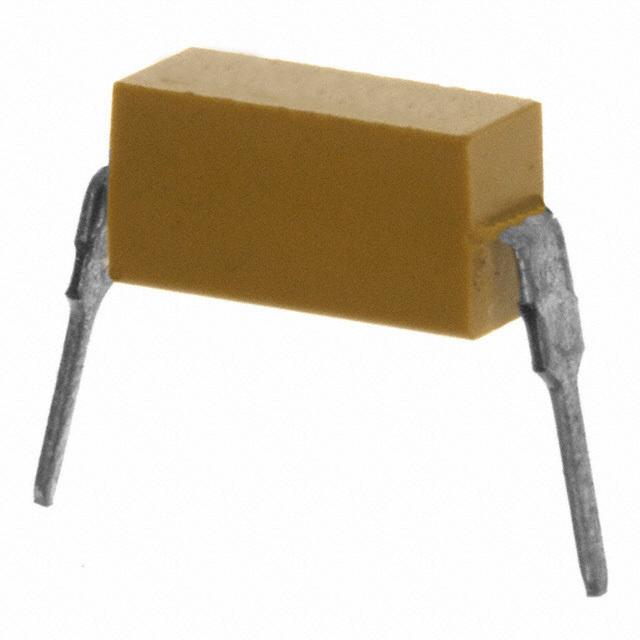

You can&s;t go wrong with this MD015C223MAB multilayer ceramic capacitor from AVX, it is the most commonly used type of capacitor for multiple applications! It can withstand a voltage of 50 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This product is 6.6 mm long, 3.43Max mm tall and 2.54Max mm deep. It has a tolerance of 20%. Its capacitance value is 0.022uF. The MD015C223MAB MLCC capacitor has a radial termination style.
安富利:
Cap Ceramic 0.022uF 50V X7R 20% Radial 2 Pin DIP 8.255mm 125°C Slide Pack
Verical:
Cap Ceramic 0.022uF 50V X7R 20% Radial 2 Pin DIP 8.255mm 125C Slide
额定电压DC 50.0 V
电容 0.022 µF
容差 ±20 %
电介质特性 X7R
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 50 V
安装方式 Through Hole
引脚数 2
封装 DIP-2
引脚间距 8.26 mm
长度 6.60 mm
宽度 2.54 mm
高度 3.43 mm
封装 DIP-2
引脚间距 8.26 mm
材质 X7R/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Pack
最小包装 200
RoHS标准 Non-Compliant
含铅标准 Contains Lead
