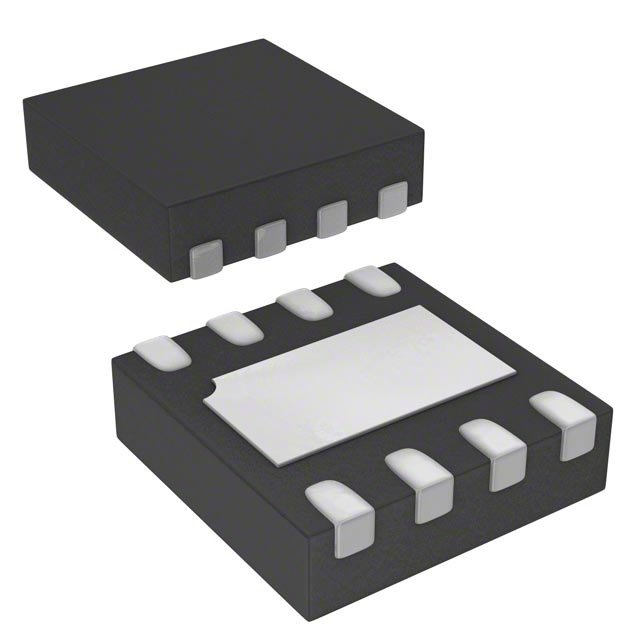

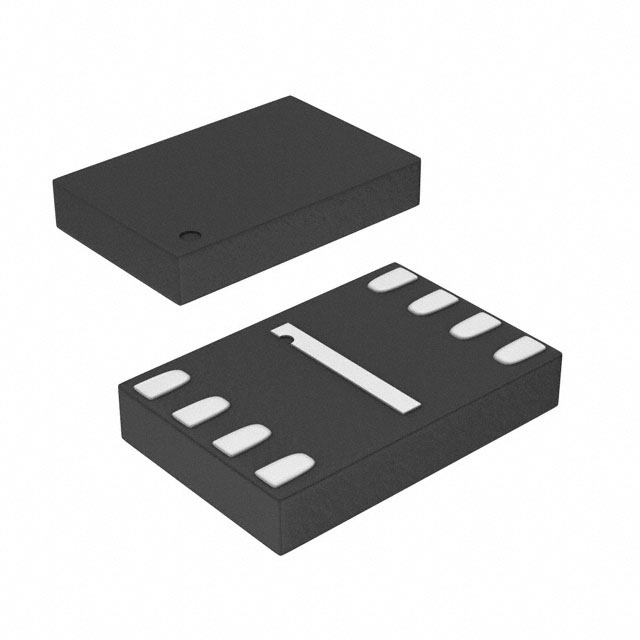

EEPROM Serial-I2C 4Kbit 512 x 8 1.8V/2.5V/3.3V/5V 8Pin UFDFPN EP T/R
Description
These I²C-compatible electrically erasable programmable memory EEPROM devices are organized as 2048/1024/512/256/128 x 8 M24C16, M24C08, M24C04, M24C02 and M24C01.
Features
■ Supports both the 100 kHz I2C Standard-mode and the 400 kHz I2C Fast-mode
■ Single supply voltage:
– 2.5 V to 5.5 V for M24Cxx-W
– 1.8 V to 5.5 V for M24Cxx-Rev 16
– 1.7 V to 5.5 V for M24Cxx-F
■ Write Control input
■ Byte and Page Write up to 16 bytes
■ Random and Sequential Read modes
■ Self-timed programming cycle
■ Automatic address incrementing
■ Enhanced ESD/latch-up protection
■ More than 1 million write cycles
■ More than 40-year data retention
■ Packages:
– SO8, TSSOP8, UFDFPN8: ECOPACK2®RoHS-compliant and Halogen-free
– PDIP8: ECOPACK1® RoHS-compliant
