VISHAY MAL202117222E3 铝电解电容, 微型, 021 ASM系列, 2200 µF, ± 20%, 40 V, 18 mm, 轴向引线

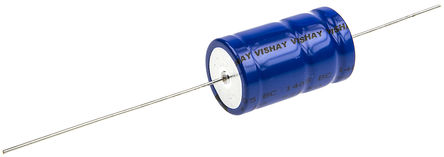

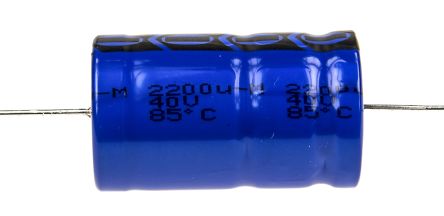

The is an axial leaded aluminium Electrolytic Capacitor. Miniaturised, high CV-product per unit volume. Cylindrical aluminium case and insulated with a blue sleeve. Suitable for coupling, decoupling, smoothing, filtering and buffering.
- .
- 1390mA RMS at 100kHz/+85°C Rated ripple current
- .
- 180µA after 5 minutes Maximum leakage current
- .
- 0.065R at 10kHz Maximum impedance
- .
- Endurance of 2500hours to 8000hours at 85°C based on case size
- .
- Miniaturized, high CV product per unit volume
- .
- Charge and discharge proof
- .
- Cylindrical aluminium case, insulated with a blue sleeve
- .
- Low mounting height boards, vibration and shock resistant
额定电压DC 40.0 V
电容 2200 µF
等效串联电阻ESR 118 mΩ
容差 ±20 %
纹波电流 1.39 A
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压 40 V
安装方式 Through Hole
引脚数 2
长度 30 mm
高度 30 mm
直径 18.0 mm
介质材料 Aluminum Electrolytic
工作温度 -40℃ ~ 85℃
包装方式 Bulk
寿命（小时） 5000h @85℃
制造应用 电源管理, Portable Devices, Consumer Electronics, 工业, 便携式器材, 消费电子产品, Power Management, Industrial, 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MAL202117222E3 Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
MCAX40V228M18X36 Multicomp | 功能相似 | MAL202117222E3和MCAX40V228M18X36的区别 |
