MM74HC00M

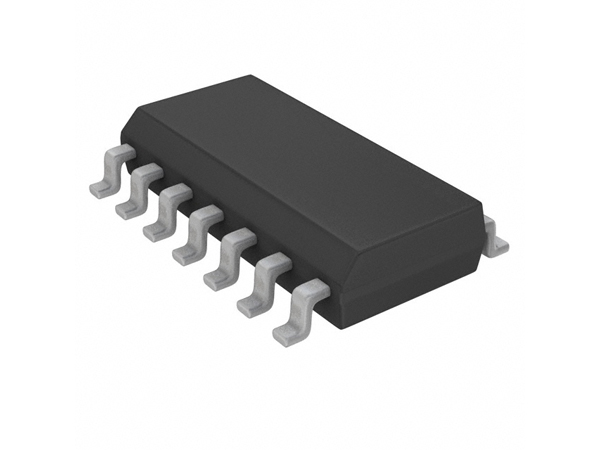

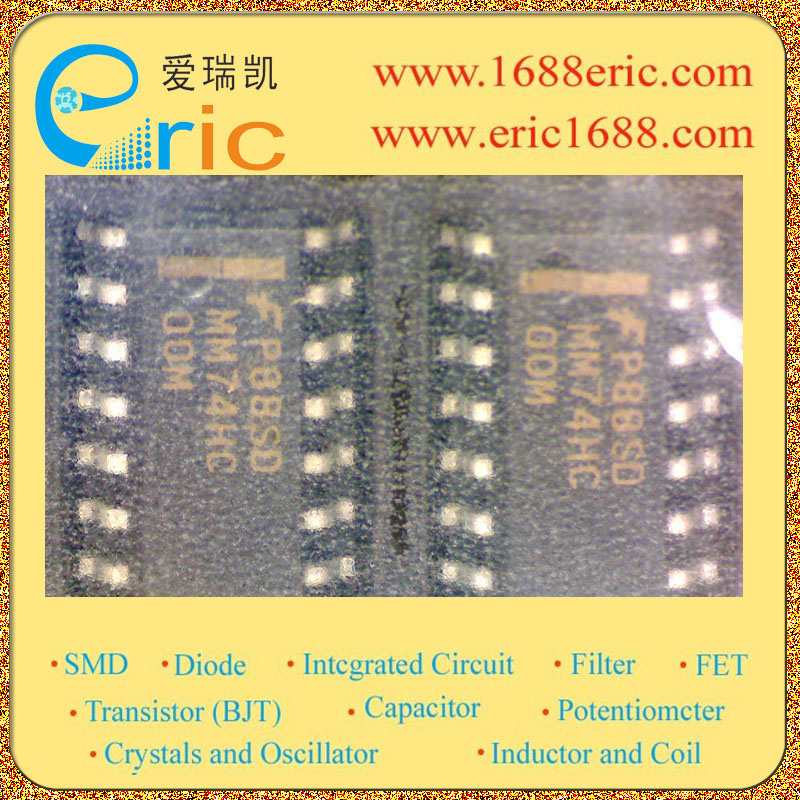

FAIRCHILD SEMICONDUCTOR  MM74HC00M  与非门, HC系列, 4门, 2输入, 5.2 mA, 2V至6V, SOIC-14

逻辑类型Logic Type| 与非门 NAND Gate \---|--- 电路数Number of Circuits| 4 输入数Number of Inputs| 2 电源电压VccVoltage - Supply| 2V~6V 静态电流IqCurrent - Quiescent Max| 2uA 输出高，低电平电流Current - Output High, Low| -5.2mA，5.2mA 低逻辑电平Logic Level - Low| 0.5V~1.8V 高逻辑电平Logic Level - High| 1.5V~4.2V 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL| 8ns @ 6V，51pF Description & Applications| Quad 2-Input NAND Gate ；Features Typical propagation delay: 8 ns Wide power supply range: 2–6V Low quiescent current: 20 µA maximum 74HC Series Low input current: 1 µA maximum Fanout of 10 LS-TTL loads 描述与应用| 四路2输入与非门;特性 典型的传输延迟为8 ns 宽电源电压范围：2-6V 低静态电流：20μA最大（74HC系列） 低输入电流：最大1μA 扇出的10个LS-TTL负载
