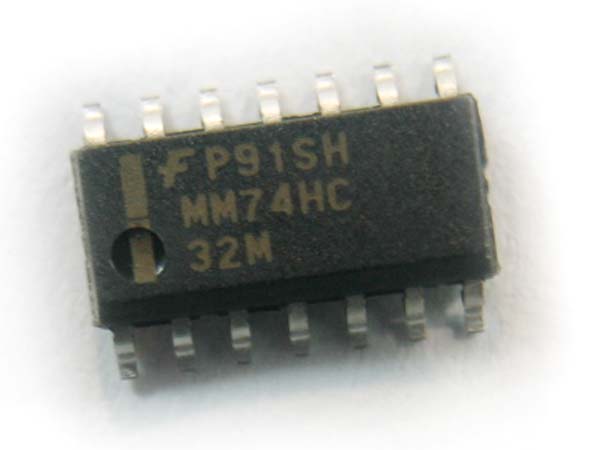

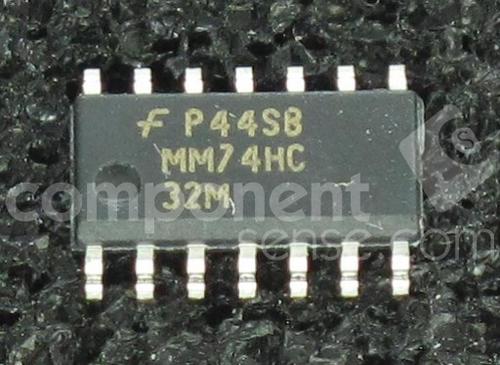

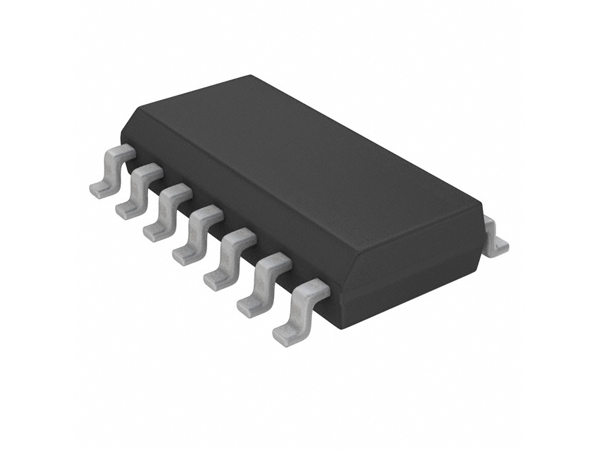

MM74HC32M

FAIRCHILD SEMICONDUCTOR  MM74HC32M  或门, HC系列, 4门, 2输入, 5.2 mA, 2V至6V, SOIC-14

The is a quad 2-input OR Gate utilize advanced silicon-gate CMOS technology to achieve operating speeds similar to LS-TTL gates with the low power consumption of standard CMOS integrated circuits. All gates have buffered outputs providing high noise immunity and the ability to drive 10 LS-TTL loads. The 74HC logic family is functionally as well as pin-out compatible with the standard 74LS logic family. All inputs are protected from damage due to static discharge by internal diode clamps to VCC and ground.

.

10ns Propagation delay

.

20µA Maximum low quiescent current

.

1µA Maximum low input current

.

Fan out of 10 LS-TTL loads
