M24C16-RMB6TG

16Kbit的， 8Kbit ， 4k位， 2Kbit和1K位，串行I²C总线EEPROM 16Kbit, 8Kbit, 4Kbit, 2Kbit and 1Kbit Serial I2C Bus EEPROM

Description

These I²C-compatible electrically erasable programmable memory EEPROM devices are organized as 2048/1024/512/256/128 x 8 M24C16, M24C08, M24C04, M24C02 and M24C01.

Features

■ Supports both the 100 kHz I2C Standard-mode and the 400 kHz I2C Fast-mode

■ Single supply voltage:

– 2.5 V to 5.5 V for M24Cxx-W

– 1.8 V to 5.5 V for M24Cxx-Rev 16

– 1.7 V to 5.5 V for M24Cxx-F

■ Write Control input

■ Byte and Page Write up to 16 bytes

■ Random and Sequential Read modes

■ Self-timed programming cycle

■ Automatic address incrementing

■ Enhanced ESD/latch-up protection

■ More than 1 million write cycles

■ More than 40-year data retention

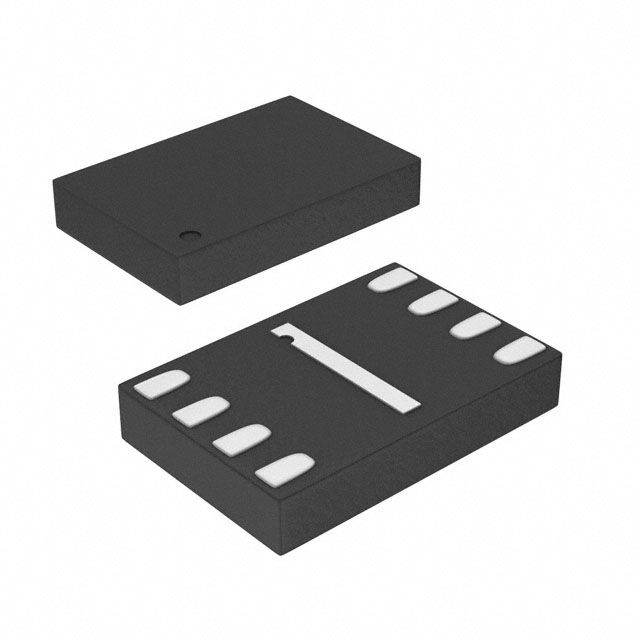

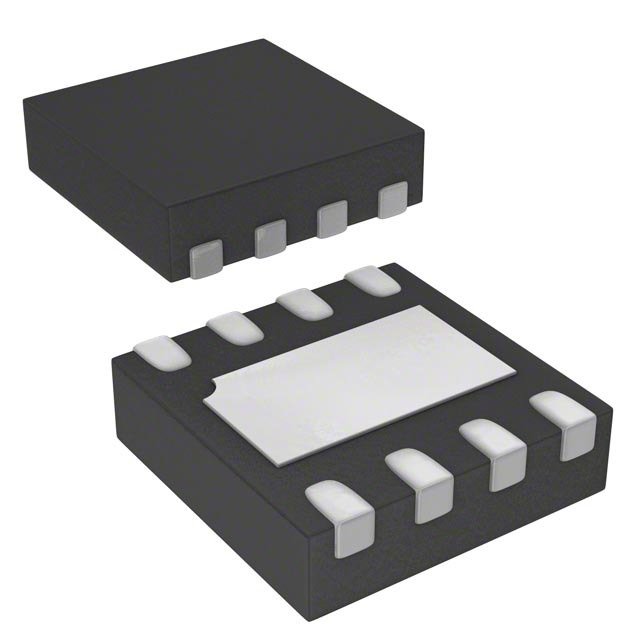

■ Packages:

– SO8, TSSOP8, UFDFPN8: ECOPACK2®RoHS-compliant and Halogen-free

– PDIP8: ECOPACK1® RoHS-compliant
