M24128-BFMB6TG

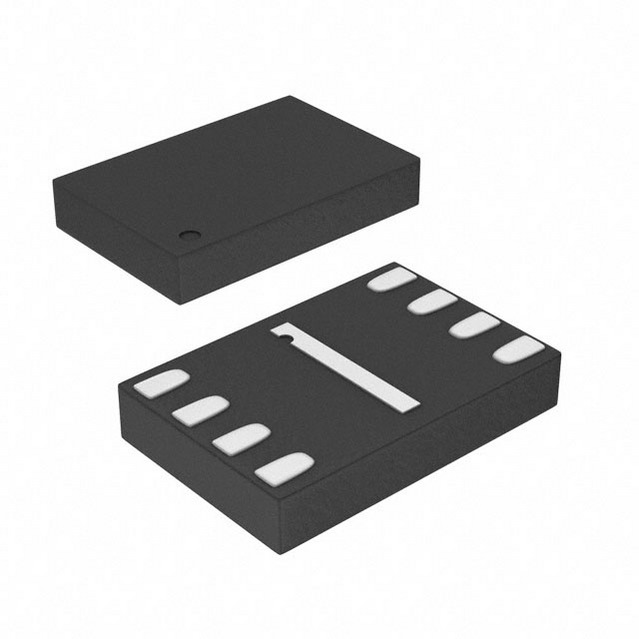

STMICROELECTRONICS  M24128-BFMB6TG  EEPROM, 128 Kbit, 16K x 8位, 400 kHz, 串行 I2C, UFDFN, 8 引脚

Description

The M24C32, M24C64 and M24128 devices are I2C-compatible electrically erasable

programmable memories EEPROM. They are organized as 4096 × 8 bits, 8192 × 8 bits and 16384 × 8 bits, respectively.

I2C uses a two-wire serial interface, comprising a bi-directional data line and a clock line.

The devices carry a built-in 4-bit Device Type Identifier code 1010 in accordance with the

I2C bus definition.

Features

■ Two-wire I2C serial interface supports 400 kHz protocol

■ Single supply voltages see Table 1 for root part numbers:

– 2.5 V to 5.5 V

– 1.8 V to 5.5 V

– 1.7 V to 5.5 V

■ Write Control input

■ Byte and Page Write

■ Random and Sequential Read modes

■ Self-timed programming cycle

■ Automatic address incrementing

■ Enhanced ESD/latch-up protection

■ More than 1 Million write cycles

■ More than 40-year data retention

■ Packages

– ECOPACK® RoHS compliant
