MAL202118222E3

VISHAY  MAL202118222E3  铝电解电容, 微型, 021 ASM系列, 2200 µF, ± 20%, 63 V, 21 mm, 轴向引线

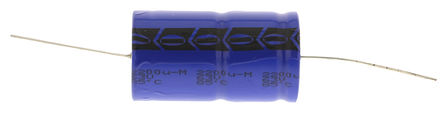

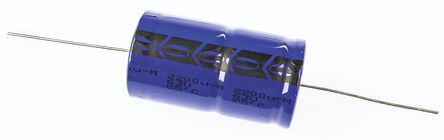

The Vishay 021 ASM series are axial leaded, miniature, standard aluminium electrolytic capacitors. The capacitance value ranges from 1µF to 15mF. These capacitors are used in smoothing, filtering, buffering circuits, power supply, audio-video and general purpose applications.

.

±20% tolerance

.

Working voltage range of 6.3V to 100V

.

Operating temperature ranges from -40°C to +85°C

.

Endurance of 2500hours to 8000hours at 85°C based on case size

.

Miniaturized, high CV product per unit volume

.

Charge and discharge proof

.

Cylindrical aluminium case, insulated with a blue sleeve

.

Low mounting height boards, vibration and shock resistant
