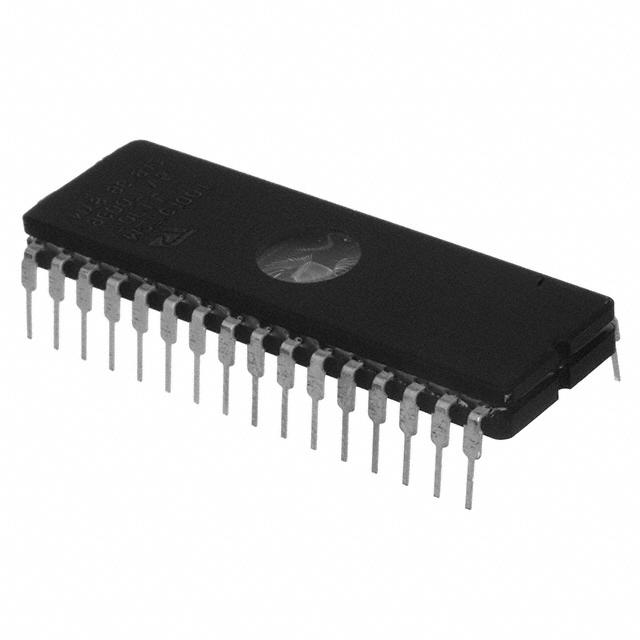

M27C801-80F1

8兆位（1MB ×8） UV EPROM和OTP EPROM 8 Mbit 1Mb x 8 UV EPROM and OTP EPROM

Description

The M27C801 is an 8 Mbit EPROM offered in the two ranges UV ultra violet erase and OTP one time programmable. It is ideally suited for applications where fast turn-around and pattern experimentation are important requirements and is organized as 1,048,576 by 8bits.

Features

■ 5 V ± 10% supply voltage in Read operation

■ Access time: 55 ns

■ low Power Consumption:

– Active current: 35 mA at 5 MHz

– Standby current: 100 µA

■ Programming voltage: 12.75 V ± 0.25 V

■ Programming time: 50 µs/word

■ Electronic signature

– Manufacturer code: 20h

– Device code: 42h

■ ECOPACK® packages available
