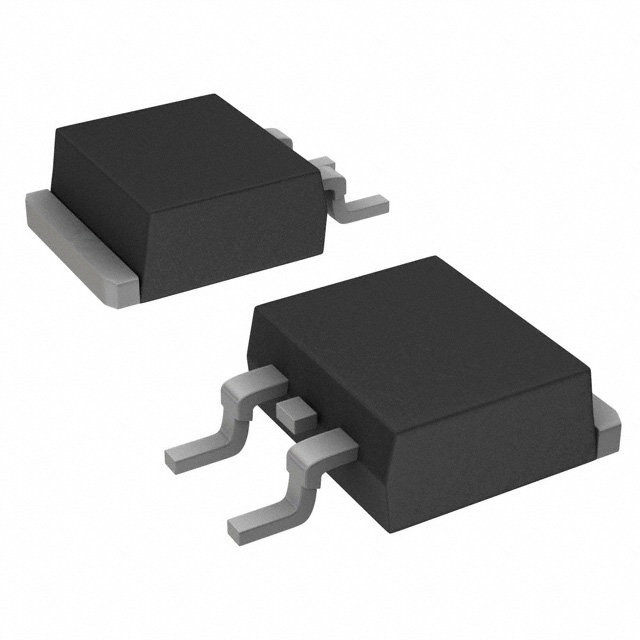

MURB1620CTR

超快整流器16安培， 200伏特 ULTRAFAST RECTIFIER 16 AMPERES, 200 VOLTS

SWITCHMODETM Power Rectifier

These state−of−the−art devices are  designed for use in negative switching power supplies, inverters and as free wheeling diodes. Also, used in conjunction with common cathode dual Ultrafast Rectifiers, makes a single phase full−wave bridge.

Features

•Common Anode Dual Rectifier 8.0 A per Leg or 16 A per Package

•Ultrafast 35 Nanosecond Reverse Recovery Times

•Exhibits Soft Recovery Characteristics

•High Temperature Glass Passivated Junction

•Low Leakage Specified @ 150°C Case Temperature

•Current Derating @ Both Case and Ambient Temperatures

•Epoxy Meets UL 94 V−0 @ 0.125 in

•Complement to MUR1620CT and MURB1620CT Common Cathode Device

•Pb−Free Packages are Available

Mechanical Characteristics:

•Case: Epoxy, Molded

•Weight: MUR1620CTR: 1.9 Grams Approximately

            : 1.7 Grams Approximately

•Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable

•Lead Temperature for Soldering Purposes: 260°C Max. for 10 Seconds
