2输入异或门
Now you can design fundamental logical circuits using some of "s logic gates! This gate has an operating temperature range of -55 °C to 125 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This device has a typical operating supply voltage of 3.3|5|9|12|15 V. Its minimum operating supply voltage of 3 V, while its maximum is 18 V.
电源电压DC 15.0 V
无卤素状态 Halogen Free
输出接口数 1
电路数 4

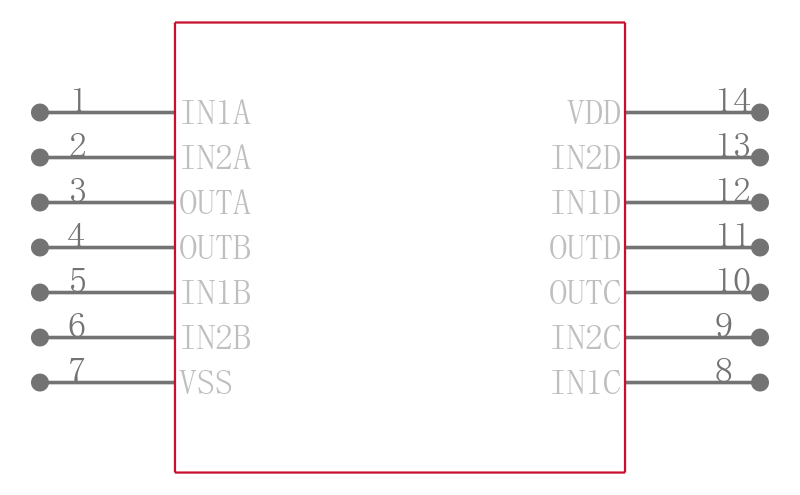

针脚数 14
逻辑门个数 4
输入数 2
工作温度Max 125 ℃
工作温度Min -55 ℃
电源电压 3V ~ 18V
电源电压Max 18 V
电源电压Min 3 V
安装方式 Surface Mount
引脚数 14
封装 SOIC-14
宽度 4 mm
封装 SOIC-14
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MC14070BDR2G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MC14070BDG 安森美 | 类似代替 | MC14070BDR2G和MC14070BDG的区别 |
MC14070BD 安森美 | 类似代替 | MC14070BDR2G和MC14070BD的区别 |
MC14070BCPG 安森美 | 功能相似 | MC14070BDR2G和MC14070BCPG的区别 |
