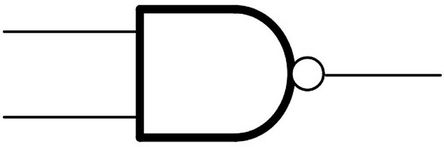

ON SEMICONDUCTOR MC74LCX00DTR2G 芯片, 四路与非门, 2输入, TSSOP-14
74LCX 系列,On Semiconductor
高级高速(低电压)CMOS 逻辑
工作电压范围:2.0 至 3.6V
5V 容差输入和输出
### 74LCX 系列
得捷:
IC GATE NAND 4CH 2-INP 14TSSOP
欧时:
### 74LCX 系列,On Semiconductor高级高速(低电压)CMOS 逻辑 工作电压范围:2.0 至 3.6V 5V 容差输入和输出 ### 74LCX 系列
立创商城:
与非门
e络盟:
与非门, 74LCX00系列, 2输入, 2V至3.6V电源, 24mA输出, TSSOP-14
艾睿:
Thanks to ON Semiconductor and their MC74LCX00DTR2G logic gates, you can simplify your circuit down to a fundamental level. This gate has a minimum operating temperature of -40 °C and a maximum of 85 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This device has a typical operating supply voltage of 2.5|3.3 V. Its minimum operating supply voltage of 2 V, while its maximum is 3.6 V.
Allied Electronics:
MC74LCX00DTR2G, Quad 2-Input NAND LogicGate, 2 - 3.6 V, 14-Pin TSSOP
安富利:
NAND Gate 4-Element 2-IN CMOS 14-Pin TSSOP T/R
富昌:
MC74LCX00 系列 2.3至3.6 V 低压 CMOS 四 双输入 与非门 - TSSOP-14
Chip1Stop:
NAND Gate 4-Element 2-IN CMOS 14-Pin TSSOP T/R
Verical:
NAND Gate 4-Element 2-IN CMOS Automotive 14-Pin TSSOP W T/R
Newark:
# ON SEMICONDUCTOR MC74LCX00DTR2G NAND Gate, 74LCX00, 2 Input, 24 mA, 2 V to 3.6 V, TSSOP-14
力源芯城:
低压CMOS四2输入与非门
DeviceMart:
IC GATE NAND QUAD LV 2IN 14TSSOP
Win Source:
NAND Gate IC 4 Channel 14-TSSOP
电源电压DC 3.30 V
无卤素状态 Halogen Free
输出接口数 1
输出电流 24 mA
电路数 4

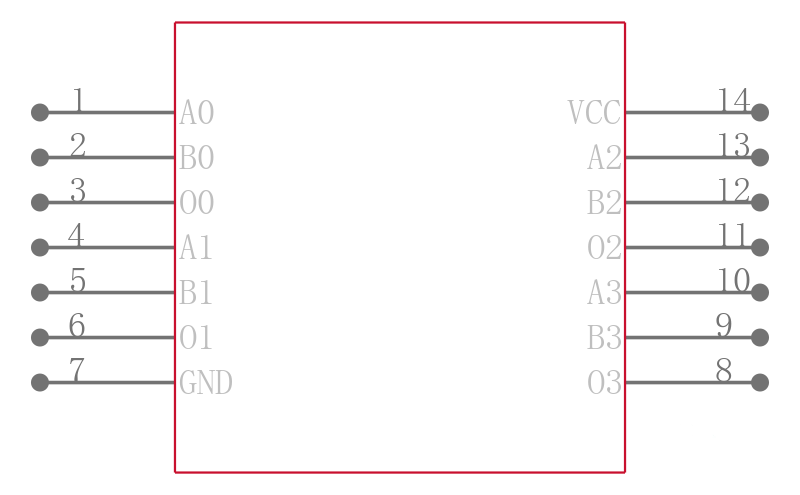

针脚数 14
逻辑门个数 4
输入数 2
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 14
封装 TSSOP-14
长度 5.1 mm
宽度 4.5 mm
高度 1.05 mm
封装 TSSOP-14
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MC74LCX00DTR2G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MC74LCX00DTR2 安森美 | 完全替代 | MC74LCX00DTR2G和MC74LCX00DTR2的区别 |
MC74LCX00DTG 安森美 | 类似代替 | MC74LCX00DTR2G和MC74LCX00DTG的区别 |
MC74LCX00DT 安森美 | 类似代替 | MC74LCX00DTR2G和MC74LCX00DT的区别 |
