MC74HC00ADG

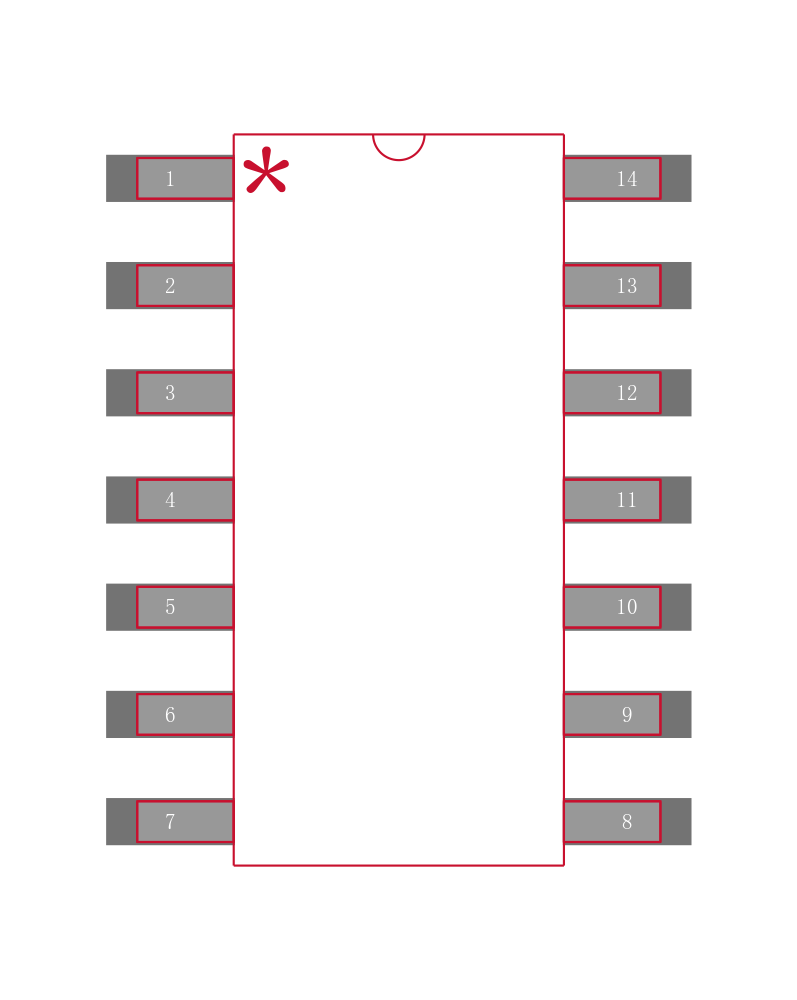

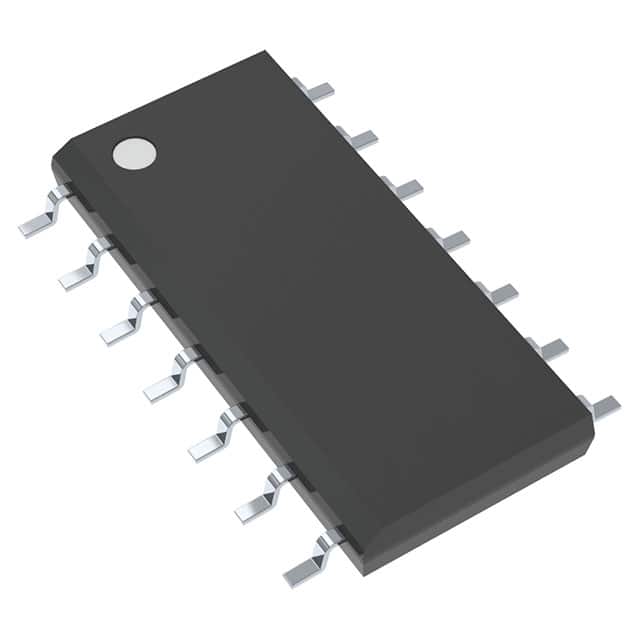

ON SEMICONDUCTOR  MC74HC00ADG  与非门, HC系列, 4门, 2输入, 5.2 mA, 2V至6V, SOIC-14

The is a high-performance Silicon-Gate CMOS based quad 2-input NAND Gate. The device is identical in pin out to the LS00. The device inputs are compatible with Standard CMOS outputs, with pull-up resistors, they are compatible with LSTTL outputs.

.

10 LSTTL loads output drive capability

.

Outputs directly interface to CMOS, NMOS and TTL

.

1µA Low input current

.

High noise immunity characteristic of CMOS devices

.

In compliance with the JEDEC standard No.7A requirements

.

Chip complexity - 32 FETs or 8 equivalent gates
