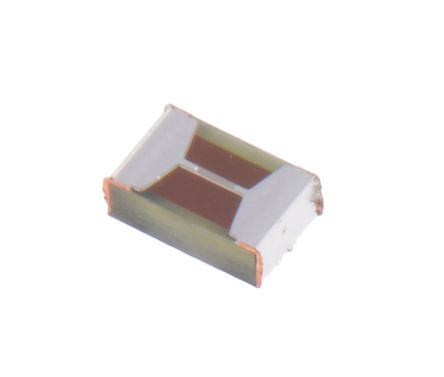

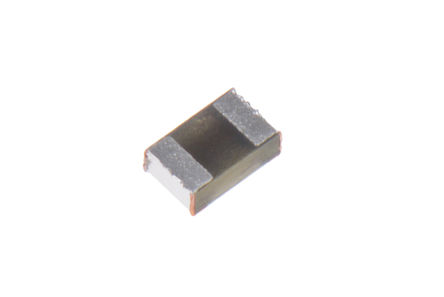

VISHAY MEPIC8005WTT 片式电阻器, 表面贴装, 镍铬合金, MEPIC系列, 2 ohm, 0805 [2012公制], ± 10%
The is a Massive Electro-Pyrotechnic Initiator Chip Resistor, dedicated to pyrotechnic applications. The MEPIC resistors are the Surface Mount Device SMD variants from the established NiCr on FR type substrate technology from Vishay Sfernice. The standard case geometry SMD enables the implementation of assembly process commonly used in the electronic component industry pick and place, reflow soldering on flat PCB used as header providing high productivity. The principle of MEPIC is to convert electrical energy into heat energy in a precise electro-thermal profile for the purpose of initiating a series of pyrotechnic events in a controlled energetic reaction. In the mining industry this effect is commonly used for the ignition of electronic detonators digital blasting. Other industries such as firework e-match manufacturing and demolition various electric detonators are also focused applications.
- .
- Firing energy down to 1.5mJ
- .
- 250µs Firing time down
- .
- 1 to 8R ±10% typical Ohmic value
- .
- Joule effect ignition
