单2A ????输入NOR门与开漏输出 Single 2âInput NOR Gate with Open Drain Output
Simplify your circuit through the use of "s logic gates, great for implementing basic logical functions. With an open drain output, this is power management at its best. This gate has a minimum operating temperature of -55 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This device has a typical operating supply voltage of 2.5|3.3|5 V. Its minimum operating supply voltage of 2 V, while its maximum is 5.5 V.
电源电压DC 5.00 V
无卤素状态 Halogen Free
输出接口数 1
输出电流 8.00 mA
电路数 1
针脚数 5
逻辑门个数 1
输入数 2
工作温度Max 125 ℃
工作温度Min -55 ℃
电源电压 2V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 5

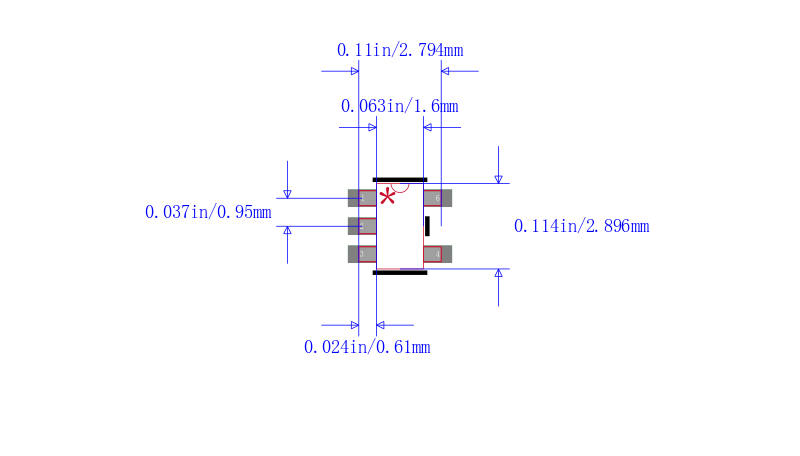

封装 TSOT-23-5
长度 3 mm
宽度 1.5 mm
高度 1 mm
封装 TSOT-23-5
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MC74VHC1G03DTT1G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MC74VHC1G03DTT1 安森美 | 完全替代 | MC74VHC1G03DTT1G和MC74VHC1G03DTT1的区别 |
MC74VHC1G03DFT1G 安森美 | 功能相似 | MC74VHC1G03DTT1G和MC74VHC1G03DFT1G的区别 |
MC74VHC1G03DFT2G 安森美 | 功能相似 | MC74VHC1G03DTT1G和MC74VHC1G03DFT2G的区别 |
