单反相器
Convert analog signals into digital signals through the use of "s inverting Schmitt trigger. This inverting Schmitt trigger has a minimum operating temperature of -55 °C and a maximum of 125 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This device has a typical operating supply voltage of 2.5|3.3|5 V. Its minimum operating supply voltage of 2 V, while its maximum is 6 V.
电源电压DC 5.00 V
无卤素状态 Halogen Free
电路数 1
针脚数 5
逻辑门个数 1
输入数 1
工作温度Max 125 ℃
工作温度Min -55 ℃
电源电压 2V ~ 6V
电源电压Max 6 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 5

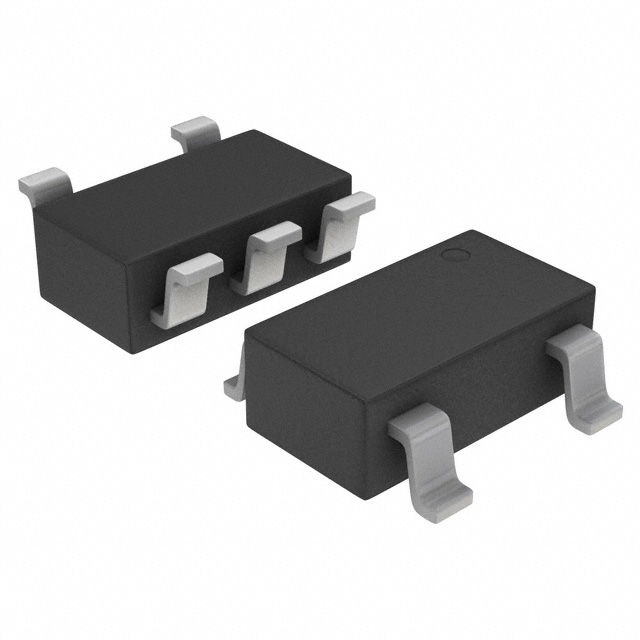

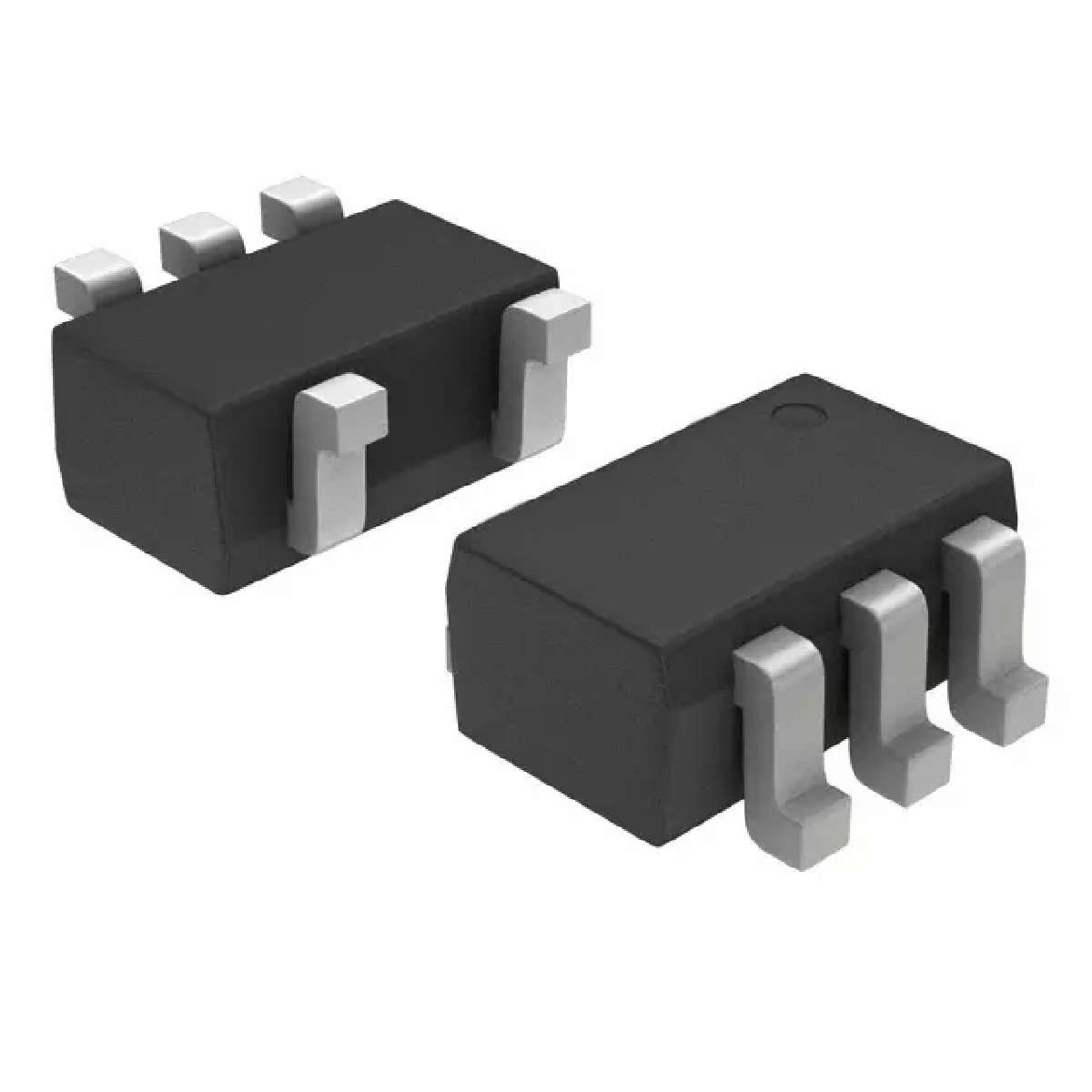

封装 SC-70-5
长度 2.2 mm
宽度 1.35 mm
高度 1 mm
封装 SC-70-5
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MC74HC1G04DFT2G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MC74HC1G04DFT1 安森美 | 完全替代 | MC74HC1G04DFT2G和MC74HC1G04DFT1的区别 |
MC74HC1G04DFT1G 安森美 | 类似代替 | MC74HC1G04DFT2G和MC74HC1G04DFT1G的区别 |
NC7S04P5X 安森美 | 类似代替 | MC74HC1G04DFT2G和NC7S04P5X的区别 |
