MC74LVX08DR2G

2输入与门

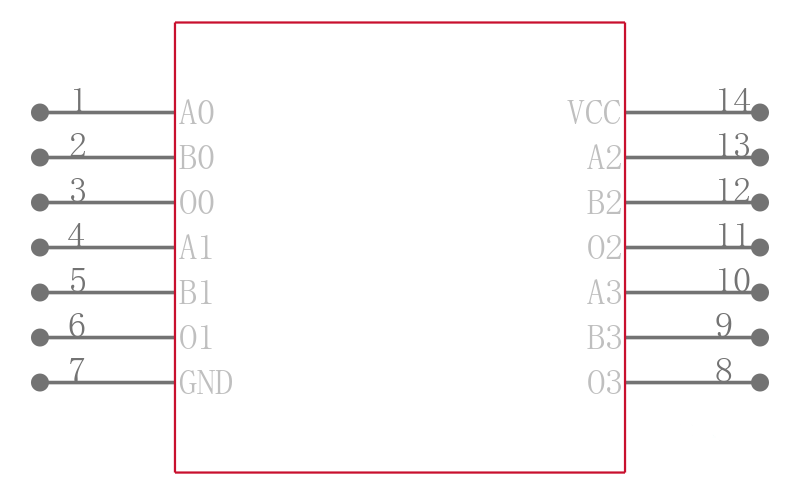

Quad 2-Input NAND Gate With 5 V−Tolerant Inputs

The MC74LVX08 is an advanced high speed CMOS 2−input AND gate. The inputs tolerate voltages up to 7.0 V, allowing the interface of 5.0 V systems to 3.0 V systems.

Features

•High Speed: tPD= 4.8 ns Typ at VCC= 3.3 V

•Low Power Dissipation: ICC= 2 A Max at TA= 25°C

•Power Down Protection Provided on Inputs

•Balanced Propagation Delays

•Low Noise: VOLP= 0.5 V Max

•Pin and Function Compatible with Other Standard Logic Families

•Latchup Performance Exceeds 300 mA

•ESD Performance:

  Human Body Model > 2000 V;

  Machine Model > 200 V

•Pb−Free Packages are Available

.
