MC74VHC1G08DTT1

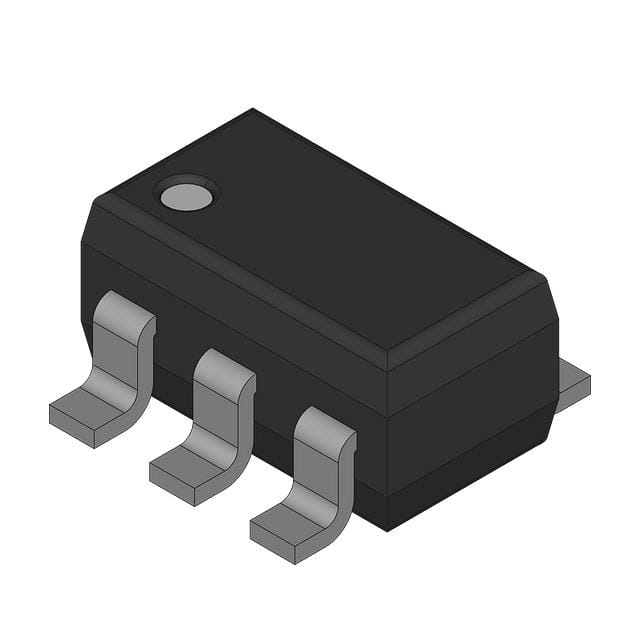

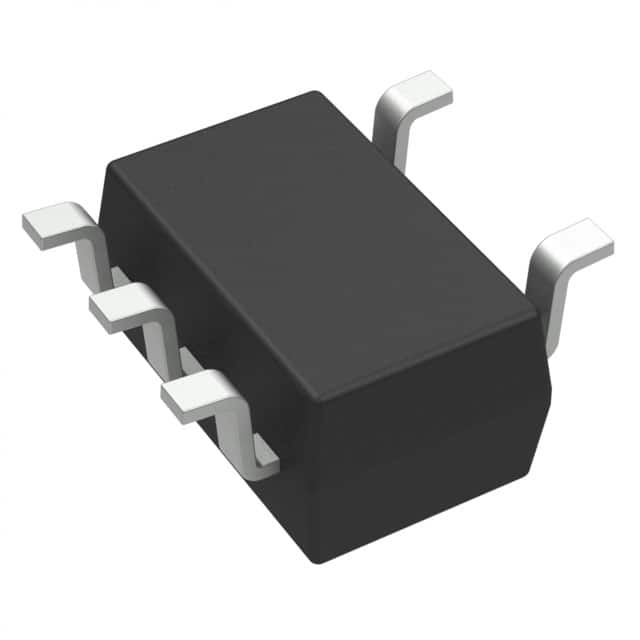

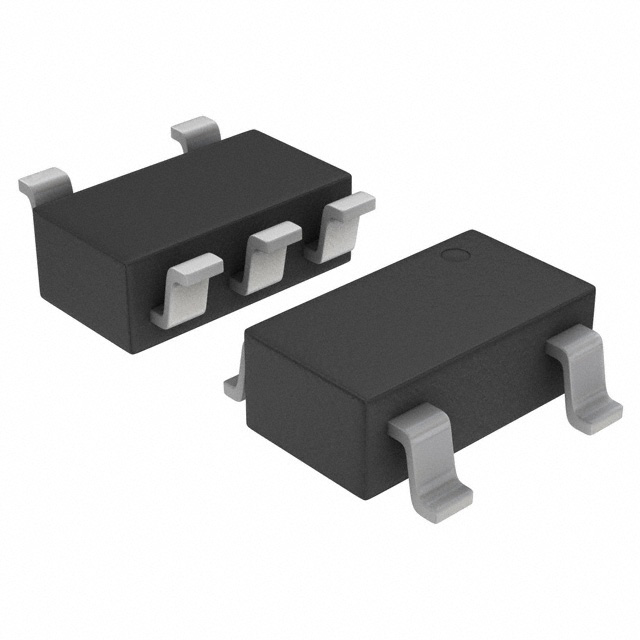

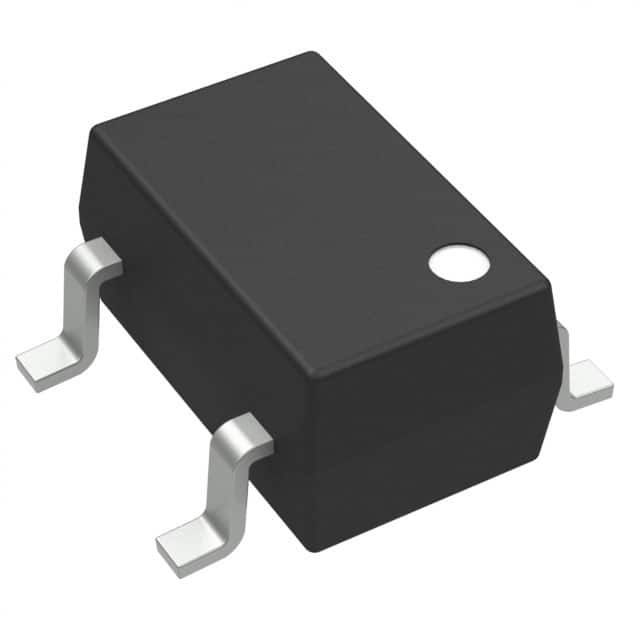

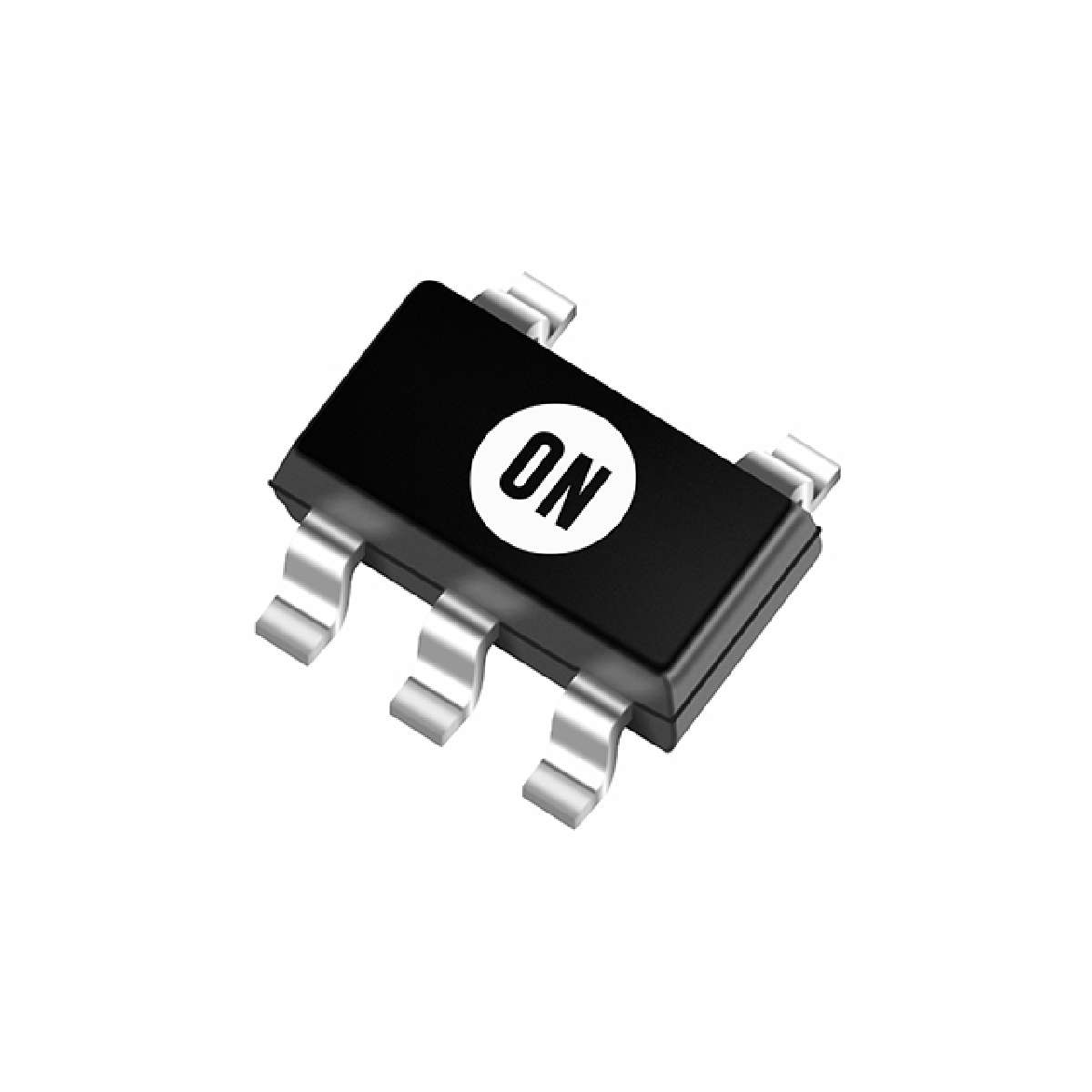

IC 与门 MC74VHC1G08DTT1 SOT-153/SOT23-5/TSOP5/SC59?5 marking/标记 V2

逻辑类型Logic Type| 与门 AND Gate \---|--- 电路数Number of Circuits| 1 输入数Number of Inputs| 2 电源电压VccVoltage - Supply| 2V~5.5V 静态电流IqCurrent - Quiescent Max| 1uA 输出高，低电平电流Current - Output High, Low| -8mA，8mA 低逻辑电平Logic Level - Low| 0.5V~1.65V 高逻辑电平Logic Level - High| 1.5V~3.85V 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL| 7.9ns @ 4.5V~5.5V，50pF Description & Applications| Single 2-input AND gate；Features High Speed: tPD = 3.5 ns Typ at VCC = 5.0 V Low Power Dissipation: ICC = 1.0 A Max at TA = 25°C Power Down Protection Provided on Inputs Balanced Propagation Delays Pin and Function Compatible with Other Standard Logic Families Chip Complexity: FETs = 62 描述与应用| 单路双输入与门；特性 高速：TPD= VCC= 5.0 V3.5纳秒（典型值） 低功耗：ICC=1.0 A（最大）在TA = 25°C 掉电保护的输入端 平衡传输延时 引脚和功能兼容与其他标准逻辑系列 芯片的复杂度：晶体管数= 62
