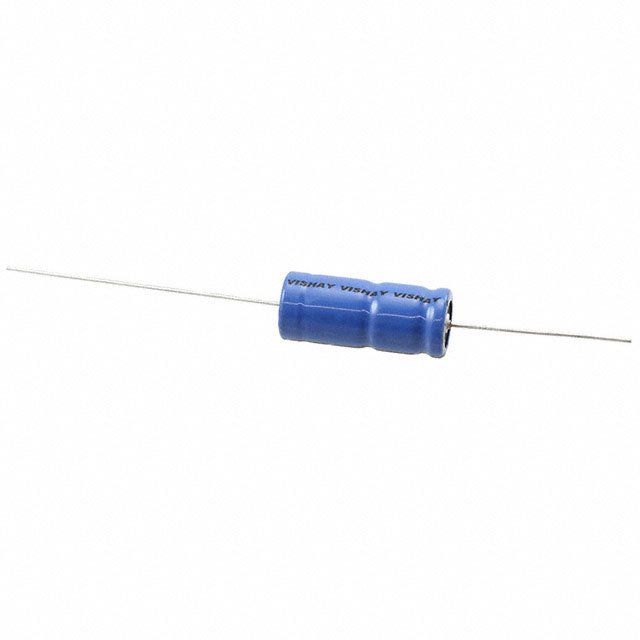

MAL213819101E3图片5
MAL213819101E3概述

VISHAY  MAL213819101E3  铝电解电容, 100uF 20%容差 100V

**Features:**

* Polarized Aluminum Electrolytic Capacitors, Non-Solid electrolyte

* Axial Leads, Cylindrical Aluminum Case, Insulated with a Blue Sleeve Case Φ 6.3 × 12.7 and 7.7 × 12.7 mm Are Moulded with Flame Retardant Plastic Material

* Charge and Discharge Proof

* Long Useful Life: 2000 to 10 000 Hours at 105°C, High Reliability

* High Ripple Current Capability

* Miniaturized, High CV-Product Per Unit Volume

* Lead Pb-Free Versions are RoHS Compliant

**Applications:**

* Industrial, Automotive, EDP and Telecommunication

* Smoothing, Filtering, Buffering in SMPS; Coupling, Decoupling, Timing

* Portable and Mobile Equipment Small Size, Low Mass

* Stand-By Applications

* Low Mounting Height Boards, Vibration and Shock Resistant

MAL213819101E3中文资料参数规格
技术参数

电容 100 µF

等效串联电阻ESR 1.1Ω @100Hz

容差 ±20 %

纹波电流 410mA @100Hz

工作温度Max 105 ℃

工作温度Min -40 ℃

额定电压 100 V

封装参数

安装方式 Through Hole

外形尺寸

高度 30 mm

物理参数

工作温度 -40℃ ~ 105℃

其他

包装方式 Each

寿命(小时) 10000h @105℃

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买MAL213819101E3
型号: MAL213819101E3
描述:VISHAY  MAL213819101E3  铝电解电容, 100uF 20%容差 100V
