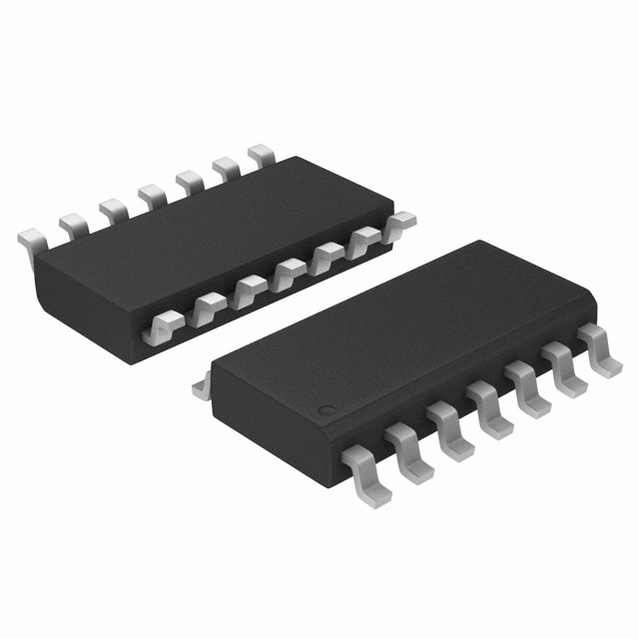

四2输入与非门施密特触发器输入 Quad 2-Input NAND Gate with Schmitt-Trigger Inputs
Quad 2−Input NAND Gatewith Schmitt−Trigger Inputs
High−Performance Silicon−Gate CMOS

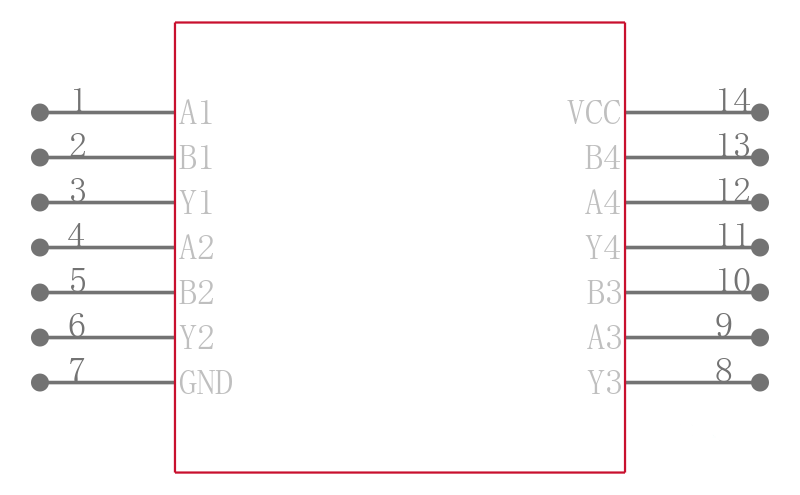

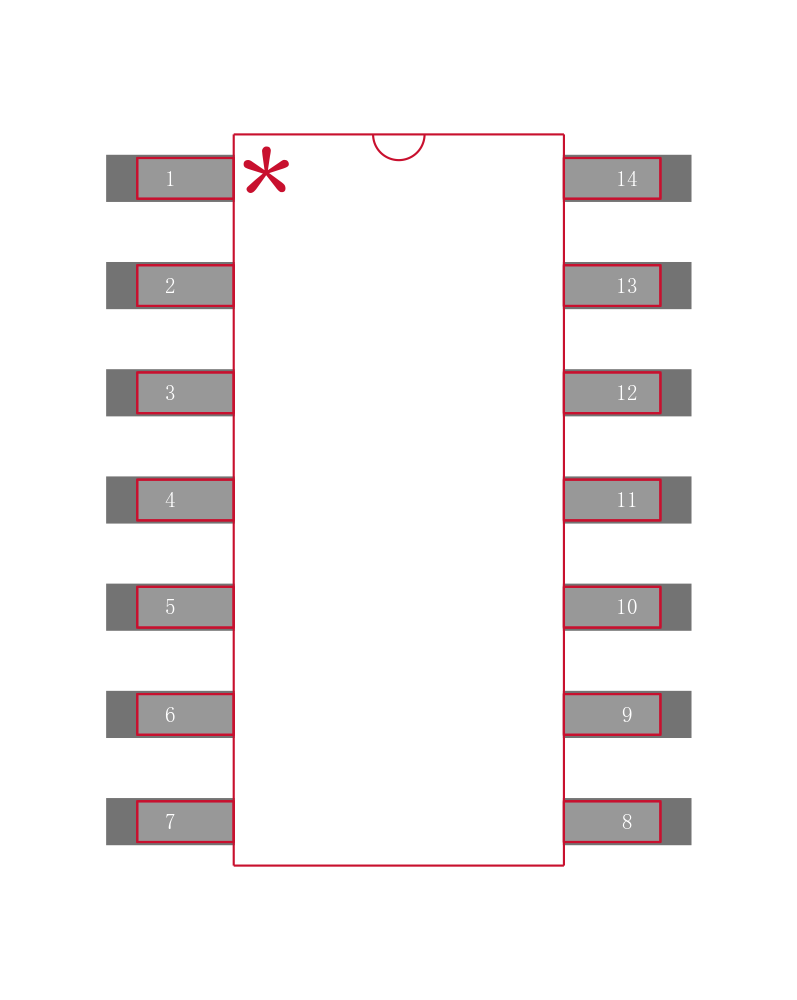

The MC74HC132A is identical in pinout to the LS132. The device inputs are compatible with standard CMOS outputs; with pull−up resistors, they are compatible with LSTTL outputs.
The HC132A can be used to enhance noise immunity or to square up slowly changing waveforms.
Features
•Output Drive Capability: 10 LSTTL Loads
•Outputs Directly Interface to CMOS, NMOS, and TTL
•Operating Voltage Range: 2.0 to 6.0 V
•Low Input Current: 1.0 A
•High Noise Immunity Characteristic of CMOS Devices
•In Compliance with the Requirements as Defined by JEDEC Standard No. 7A
•Chip Complexity: 72 FETs or 18 Equivalent Gates
•Pb−Free Packages are Available
