MC74VHC1GT08DF2G

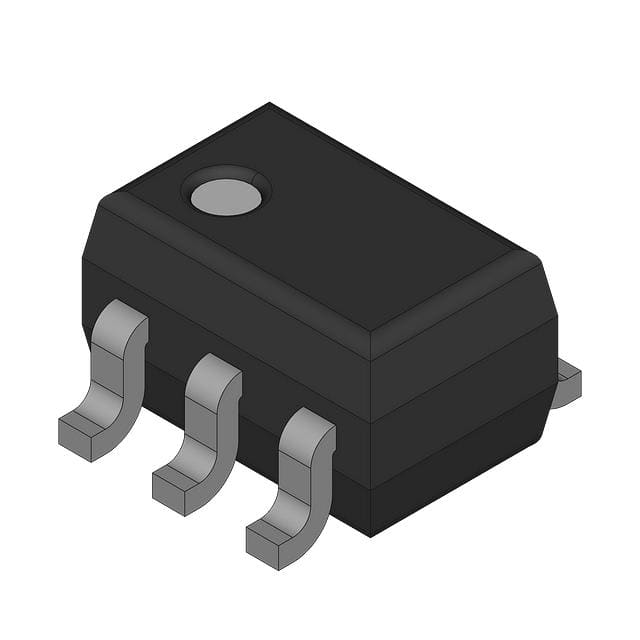

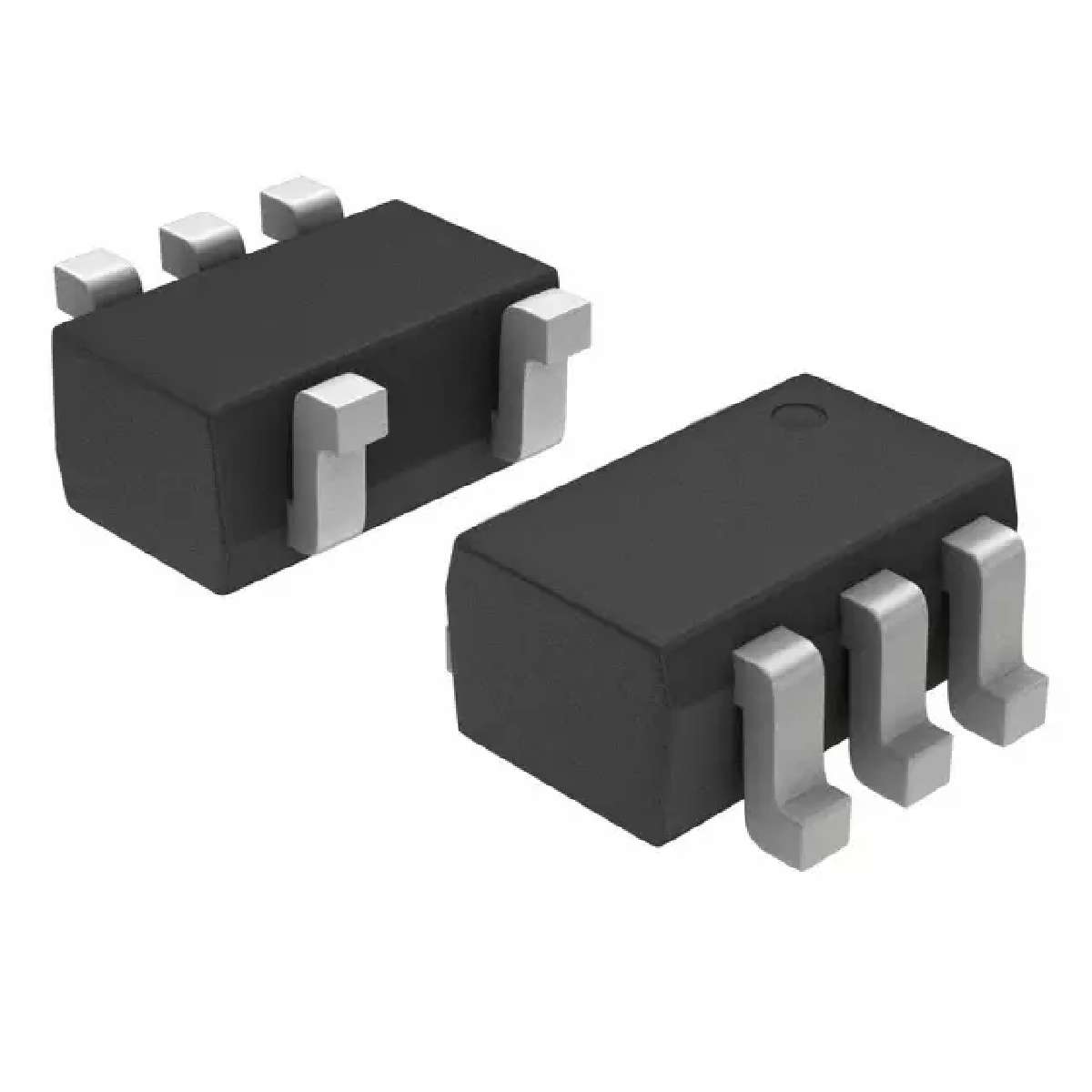

IC 与门 MC74VHC1GT08DF2G SOT-353/SC-88A/SC70-5 marking/标记 VT

逻辑类型Logic Type| 与门 AND Gate \---|--- 电路数Number of Circuits| 1 输入数Number of Inputs| 2 电源电压VccVoltage - Supply| 3V~5.5V 静态电流IqCurrent - Quiescent Max| 1uA 输出高，低电平电流Current - Output High, Low| -8mA，8mA 低逻辑电平Logic Level - Low| 0.53V~0.8V 高逻辑电平Logic Level - High| 1.4V~2V 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL| 7.9ns @ 4.5V~5.5V，50pF Description & Applications| 2-Input AND Gate/CMOS Logic Level Shifter ；Features High Speed: tPD = 3.5 ns Typ at VCC = 5.0 V Low Power Dissipation: ICC = 1 uA Max @TA = 25°C TTL−Compatible Inputs: VIL = 0.8 V; VIH = 2.0 V CMOS−Compatible Outputs: VOH > 0.8 VCC; VOL < 0.1 VCC @ Load Power Down Protection Provided on Inputs and Outputs Balanced Propagation Delays Pin and Function Compatible with Other Standard Logic Families Chip Complexity: FETs = 64; Equivalent Gates = 15 Pb−Free Package is Available 描述与应用| 2输入与门/ CMOS逻辑电平转换器;特性 高速：TPD= VCC= 5.0 V3.5纳秒（典型值） 低功耗：ICC=1uA（最大值）@ TA= 25°C TTL兼容的输入：VIL=0.8 V; VIH=2.0 V CMOS兼容输出：VOH> 0.8 VCC VOL<0.1 VCC@负载 掉电保护提供输入和输出 平衡传输延时 引脚和功能兼容与其他标准逻辑系列 芯片复杂度：场效应管=64;等效门= 15 无铅包装可用
