MC74HC86ADR2

四2输入异或门高性能硅栅CMOS Quad 2−Input Exclusive OR Gate High−Performance Silicon−Gate CMOS

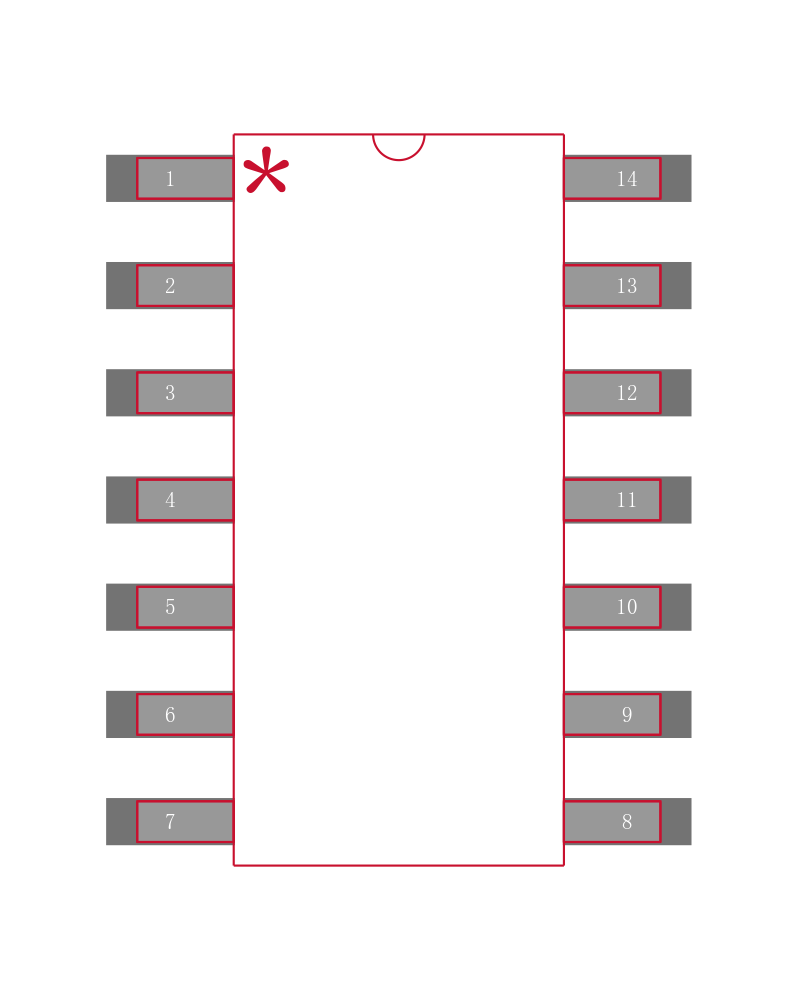

Quad 2−Input Exclusive OR Gate

High−Performance Silicon−Gate CMOS

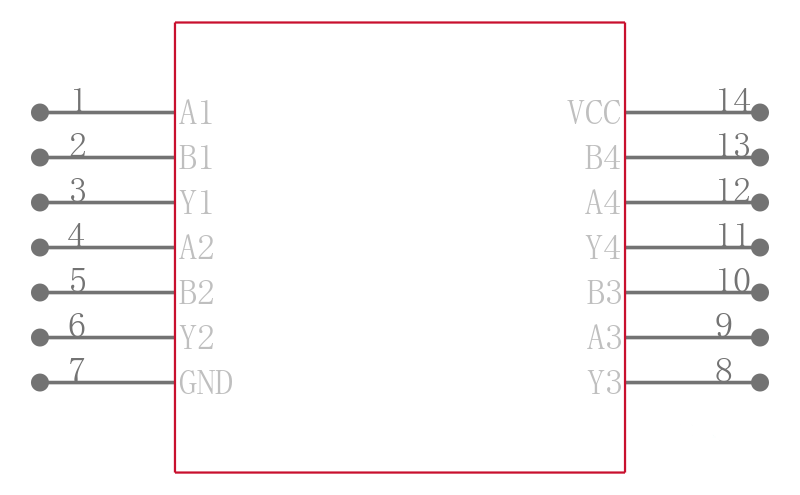

The MC74HC86A is identical in pinout to the LS86. The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LSTTL outputs.

Features

•Output Drive Capability: 10 LSTTL Loads

•Outputs Directly Interface to CMOS, NMOS, and TTL

•Operating Voltage Range: 2.0 to 6.0 V

•Low Input Current: 1 A

•High Noise Immunity Characteristic of CMOS Devices

•In Compliance with JEDEC Standard No. 7A Requirements

•Chip Complexity: 56 FETs or 14 Equivalent Gates

•Pb−Free Packages are Available
