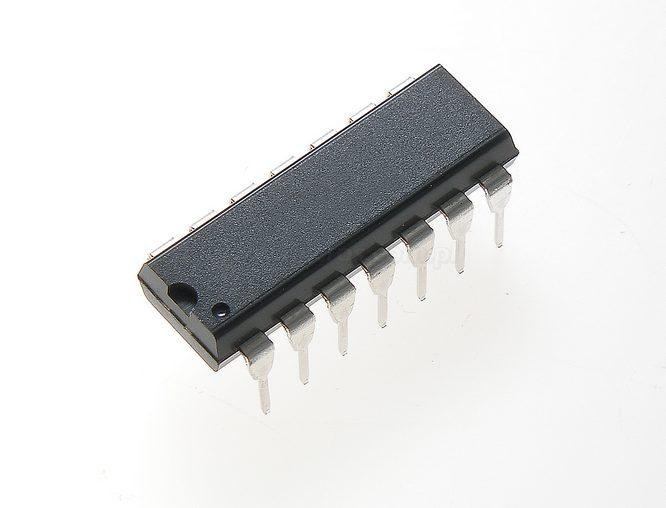

ON SEMICONDUCTOR MC14081BCPG 芯片, 4000系列 CMOS逻辑器件
** QUAD 2-Input AND Gate, 3v to 18v, 260degc, 14 Pin Pdip, PB FREE
The B Series logic gates are constructed with P and N channelenhancement mode devices in a single monolithic structure Complementary MOS. Their primary use is where low power dissipation and/or high noise immunity is desired.
* Supply Voltage Range = 3.0 Vdc to 18 Vdc
* All Outputs Buffered
* Capable of Driving Two Low?power TTL Loads or One Low?power Schottky TTL Load Over the Rated Temperature Range.
* Double Diode Protection on All Inputs Except: Triple Diode Protection on MC14011B and MC14081B
* Pin?for?Pin Replacements for Corresponding CD4000 Series B Suffix Devices
**
电源电压DC 3.00V min
工作电压 3V ~ 18V
输出接口数 1
输出电流 8.8 mA
供电电流 30 μA
电路数 4
针脚数 14
逻辑门个数 4
输入数 2
工作温度Max 125 ℃
工作温度Min -55 ℃
电源电压 3V ~ 18V
电源电压Max 18 V
电源电压Min 3 V
安装方式 Through Hole
引脚数 14
封装 PDIP-14
长度 19.56 mm
宽度 6.6 mm
高度 3.68 mm
封装 PDIP-14
工作温度 -55℃ ~ 125℃
产品生命周期 Unknown
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MC14081BCPG ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MC14081BDR2G 安森美 | 完全替代 | MC14081BCPG和MC14081BDR2G的区别 |
MC14081BDG 安森美 | 完全替代 | MC14081BCPG和MC14081BDG的区别 |
CD4081BE 德州仪器 | 功能相似 | MC14081BCPG和CD4081BE的区别 |
