MC74VHC1G08DFT1

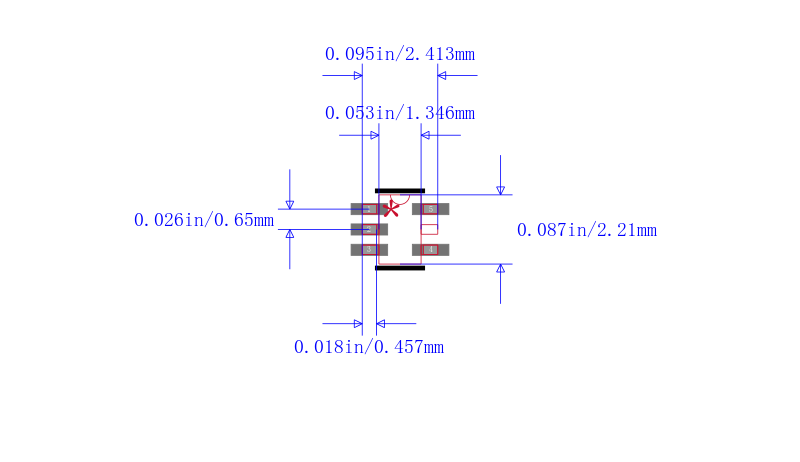

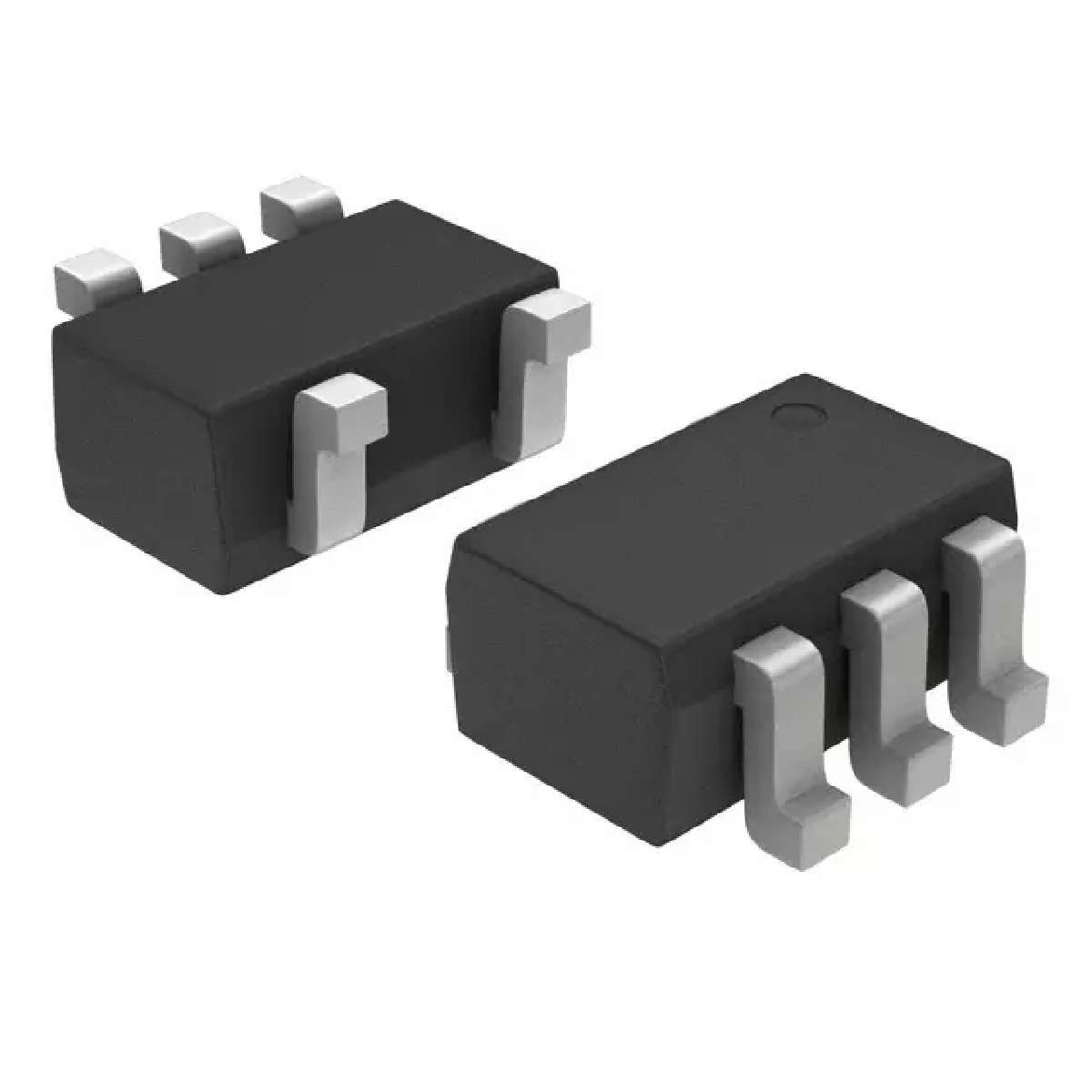

IC 与门 MC74VHC1G08DFT1 SOT-353/SC-88A/SC70-5 marking/标记 V2

逻辑类型Logic Type| 与门 AND Gate \---|--- 电路数Number of Circuits| 1 输入数Number of Inputs| 2 电源电压VccVoltage - Supply| 2V~5.5V 静态电流IqCurrent - Quiescent Max| 1uA 输出高，低电平电流Current - Output High, Low| -8mA，8mA 低逻辑电平Logic Level - Low| 0.5V~1.65V 高逻辑电平Logic Level - High| 1.5V~3.85V 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL| 7.9ns @ 4.5V~5.5V，50pF Description & Applications| Single 2-input AND gate；Features High Speed: tPD = 3.5ns Typ @VCC = 5V Low Power Dissipation: ICC = 2µA Max @TA = 25°C Power Down Protection Provided on Inputs Balanced Propagation Delays Pin and Function Compatible with Other Standard Logic Families Latchup Performance Exceeds 300mA ESD Performance: HBM > 2000V; MM > 200V, CDM > 1500V 描述与应用| 单路双输入与门；特性 高速：TPD =3.5ns的（典型值）@ VCC= 5V 低功耗：ICC=2μA（最大值）@ TA= 25°C 掉电保护的输入端 平衡传输延时 引脚和功能兼容与其他标准逻辑系列 闭锁性能超过300mA ESD性能：HBM> 2000V; MM> 200V，CDM>1500V
