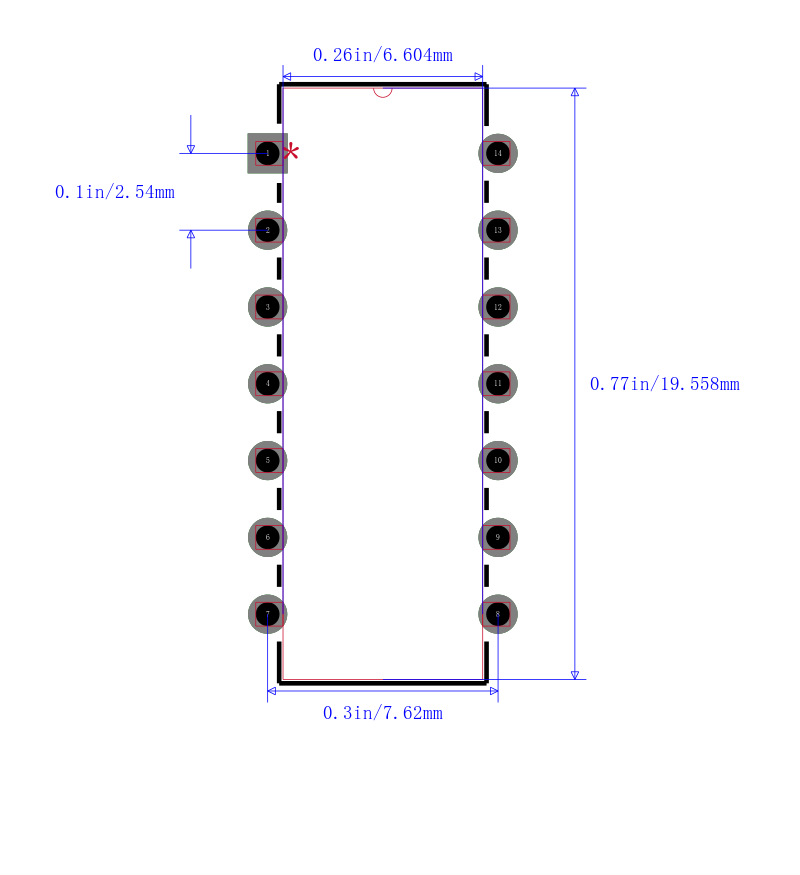

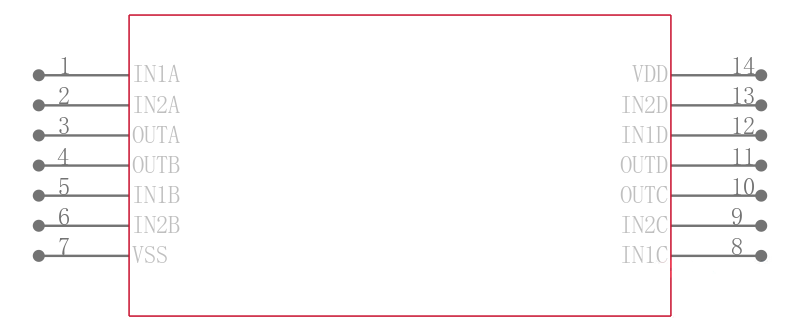

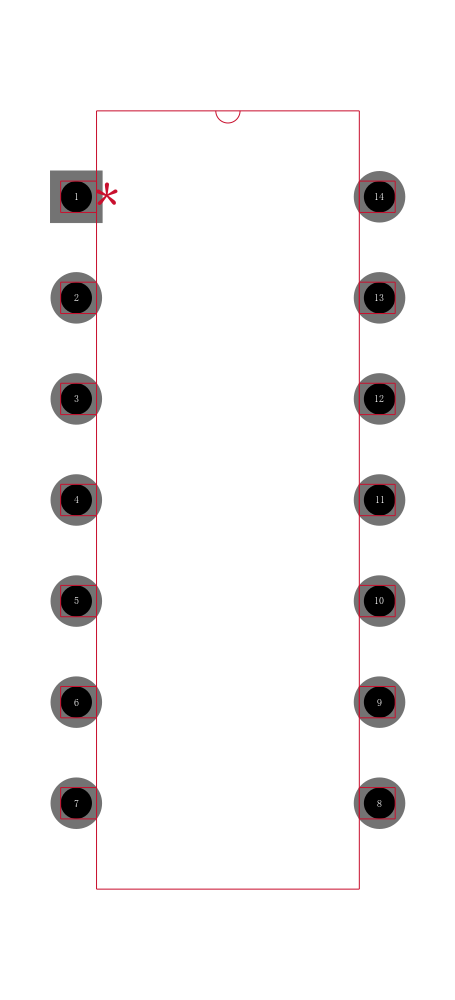

MC14093BCPG

2输入施密特触发正与非门

The MC14093B Schmitt trigger is constructed with MOS P−channel and N−channel enhancement mode devices in a single monolithic structure. These devices find primary use where low power dissipation and/or high noise immunity is desired. The MC14093B may be used in place of the MC14011B quad 2−input NAND gate for enhanced noise immunity or to “square up” slowly changing waveforms.

Features

• Supply Voltage Range = 3.0 Vdc to 18 Vdc

• Capable of Driving Two Low−Power TTL Loads or One Low−Power

   Schottky TTL Load Over the Rated Temperature Range

• Triple Diode Protection on All Inputs

• Pin−for−Pin Compatible with CD4093

• Can be Used to Replace MC14011B

• Independent Schmitt−Trigger at each Input

• Pb−Free Packages are Available
