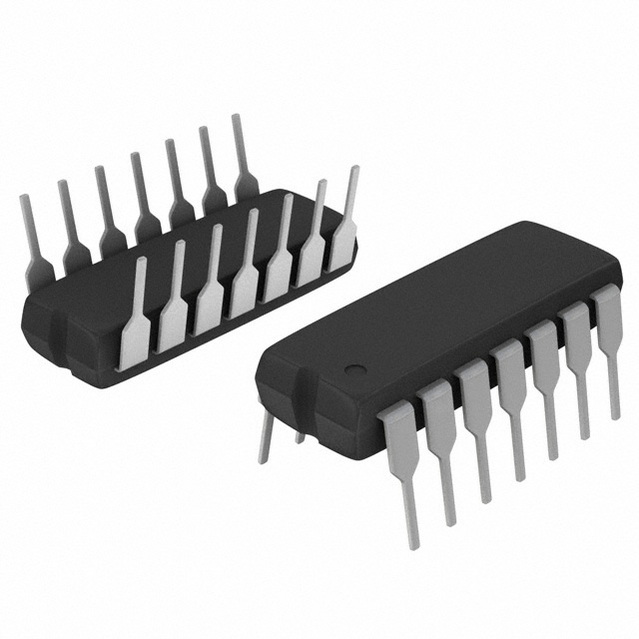

ON SEMICONDUCTOR MC74HC03ANG 逻辑芯片, 门电路
Simplify your circuit through the use of "s logic gates, great for implementing basic logical functions. With an open drain output, this is power management at its best. This gate has a minimum operating temperature of -55 °C and a maximum of 125 °C. This product comes in rail packaging to keep individual parts separated and protected. This device has a typical operating supply voltage of 2.5|3.3|5 V. Its minimum operating supply voltage of 2 V, while its maximum is 6 V.
电源电压DC 2.00V min
输出接口数 1
输出电流 5.2 mA
电路数 4
针脚数 14
逻辑门个数 4
输入数 2
工作温度Max 125 ℃
工作温度Min -55 ℃
电源电压 2V ~ 6V
电源电压Max 6 V
电源电压Min 2 V
安装方式 Through Hole
引脚数 14
封装 DIP-14
长度 19.56 mm
宽度 6.6 mm
高度 3.68 mm
封装 DIP-14
工作温度 -55℃ ~ 125℃
产品生命周期 Unknown
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MC74HC03ANG ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MC74HC03ADG 安森美 | 完全替代 | MC74HC03ANG和MC74HC03ADG的区别 |
MC74HC03AN 安森美 | 类似代替 | MC74HC03ANG和MC74HC03AN的区别 |
SN74HC03N 德州仪器 | 功能相似 | MC74HC03ANG和SN74HC03N的区别 |
