MC14011UBCPG

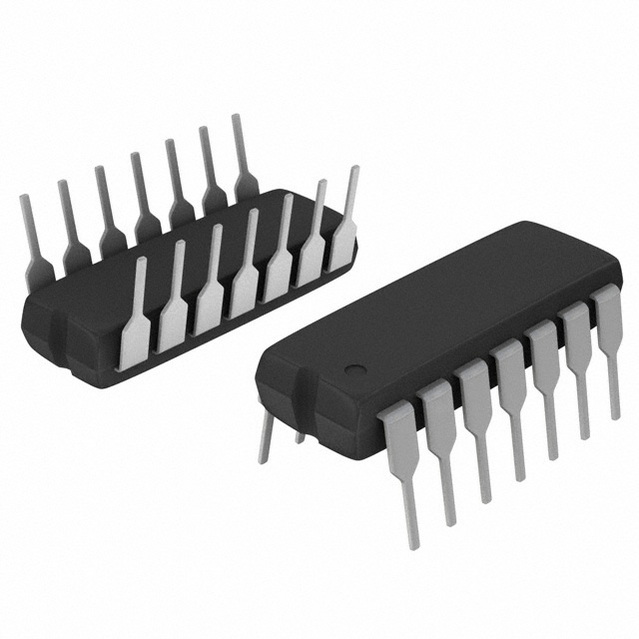

ON SEMICONDUCTOR  MC14011UBCPG  逻辑芯片, CMOS, 四2输入与非门, 4011, DIP14

The UB Series logic gates are constructed with P and N channel enhancement mode devices in a single monolithic structure Complementary MOS. Their primary use is where low power dissipation and/or high noise immunity is desired. The UB set of CMOS gates are inverting non−buffered functions.

Features

•Supply Voltage Range = 3.0 Vdc to 18 Vdc

•Linear and Oscillator Applications

•Capable of Driving Two Low−Power TTL Loads or One Low−Power Schottky TTL Load Over the Rated Temperature Range

•Double Diode Protection on All Inputs

•Pin−for−Pin Replacements for Corresponding CD4000 Series UB Suffix Devices

•Pb−Free Packages are Available
