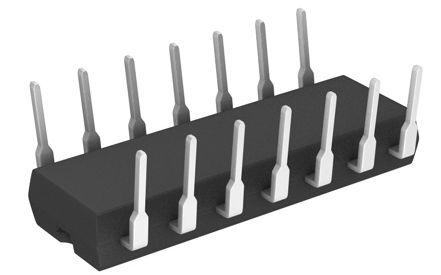

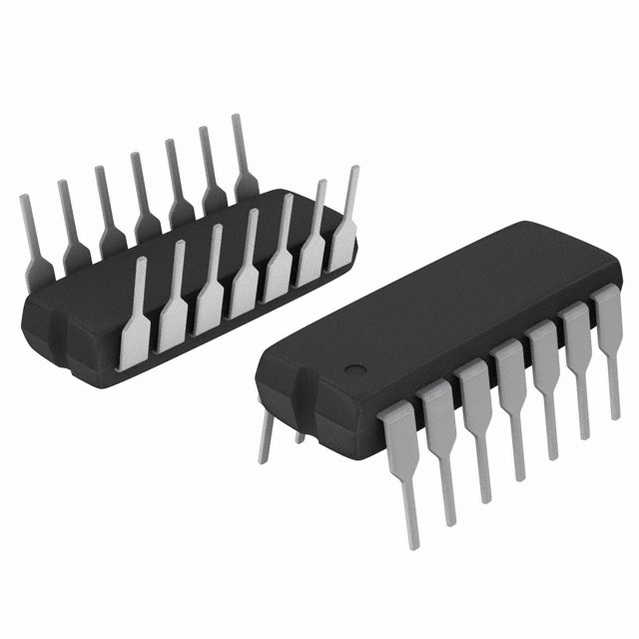

MC74HC132ANG

ON SEMICONDUCTOR  MC74HC132ANG  逻辑芯片, CMOS, 与非门, 施密特, 74HC132, 6V, DIP14

Quad 2−Input NAND Gatewith Schmitt−Trigger Inputs

High−Performance Silicon−Gate CMOS

The MC74HC132A is identical in pinout to the LS132. The device inputs are compatible with standard CMOS outputs; with pull−up resistors, they are compatible with LSTTL outputs.

The HC132A can be used to enhance noise immunity or to square up slowly changing waveforms.

Features

•Output Drive Capability: 10 LSTTL Loads

•Outputs Directly Interface to CMOS, NMOS, and TTL

•Operating Voltage Range: 2.0 to 6.0 V

•Low Input Current: 1.0 A

•High Noise Immunity Characteristic of CMOS Devices

•In Compliance with the Requirements as Defined by JEDEC Standard No. 7A

•Chip Complexity: 72 FETs or 18 Equivalent Gates

•Pb−Free Packages are Available
