MC10H113FNR2

四异或门 Quad Exclusive OR Gate

Description

The MC10H113 is a Quad Exclusive OR Gate with an enable common to all four gates. The outputs may be wire−ORed together to perform a 4−bit comparison function A = B. The enable is active LOW.

Features

• Propagation Delay, 1.3 ns Typical

• Power Dissipation 175 mW Typ/Pkg No Load

• Improved Noise Margin 150 mV Over Operating Voltage and Temperature Range

• Voltage Compensated

• MECL 10K™ Compatible

• Pb−Free Packages are Available

得捷:

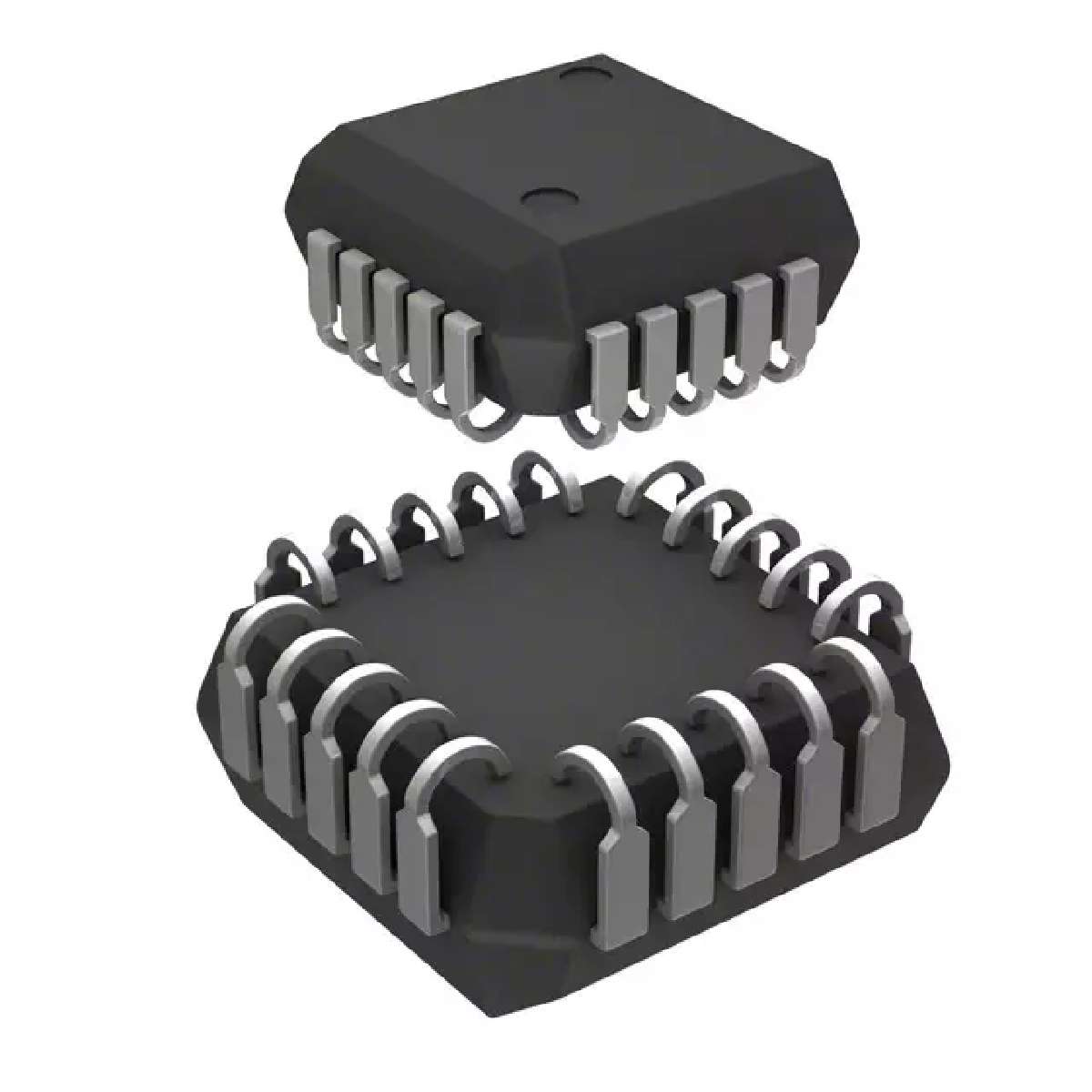

IC GATE XOR 4CH 2-INP 20PLCC

艾睿:
XOR Gate 4-Element 2-IN ECL 20-Pin PLLC T/R

Win Source:
XOR Exclusive OR IC 4 Channel 20-PLCC 9x9
