MC14584BF

六角施密特触发器 Hex Schmitt Trigger

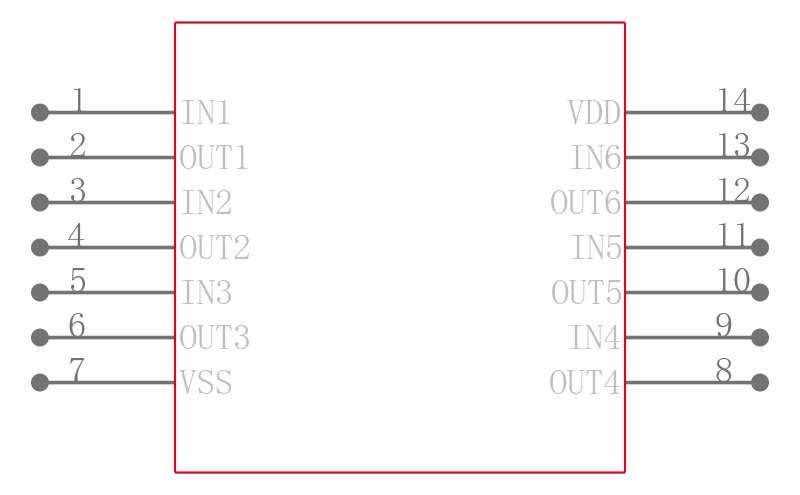

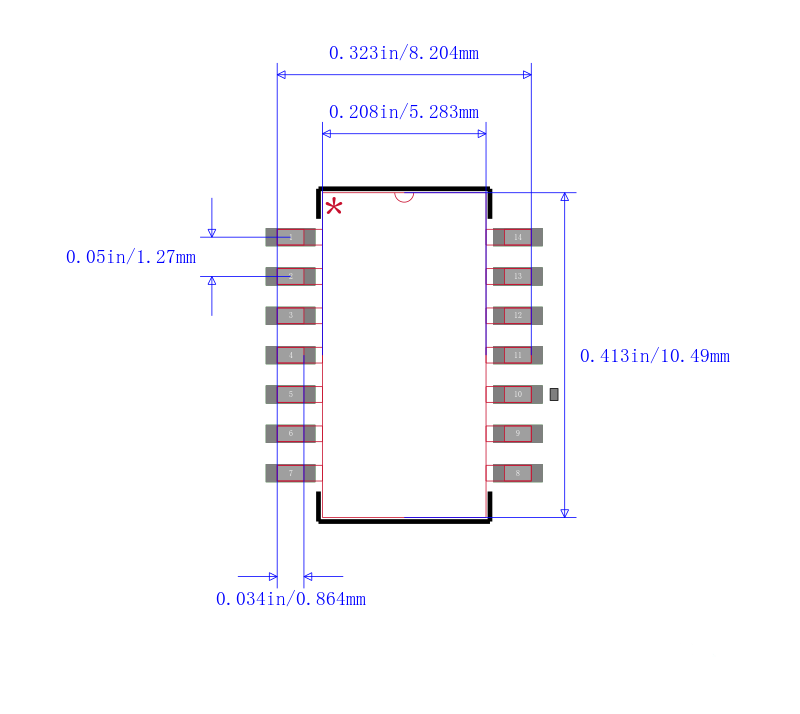

Hex Schmitt Trigger

The MC14584B Hex Schmitt Trigger is constructed with MOS P−channel and N−channel enhancement mode devices in a  single monolithic structure. These devices find primary use where low power dissipation and/or high noise immunity is desired. The MC14584B may be used in place of the MC14069UB hex inverter for enhanced noise immunity to “square up” slowly changing waveforms.

Features

• Supply Voltage Range = 3.0 Vdc to 18 Vdc

• Capable of Driving Two Low−power TTL Loads or One Low−power

   Schottky TTL Load over the Rated Temperature Range

• Double Diode Protection on All Inputs

• Can Be Used to Replace MC14069UB

• For Greater Hysteresis, Use MC14106B which is Pin−for−Pin

   Replacement for CD40106B and MM74Cl4

• Pb−Free Packages are Available
