MC74HC1G08DFT1

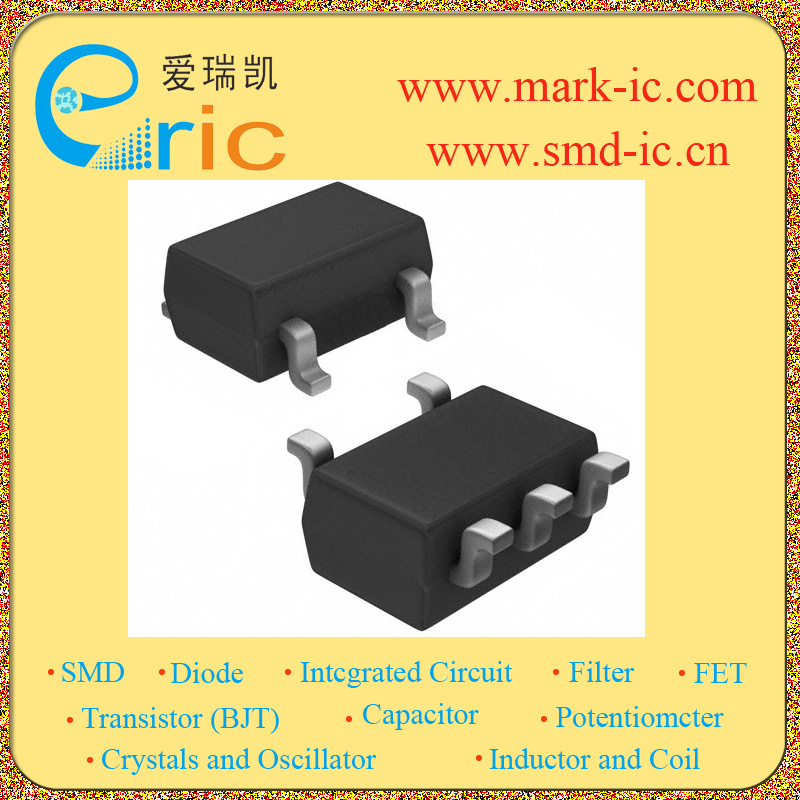

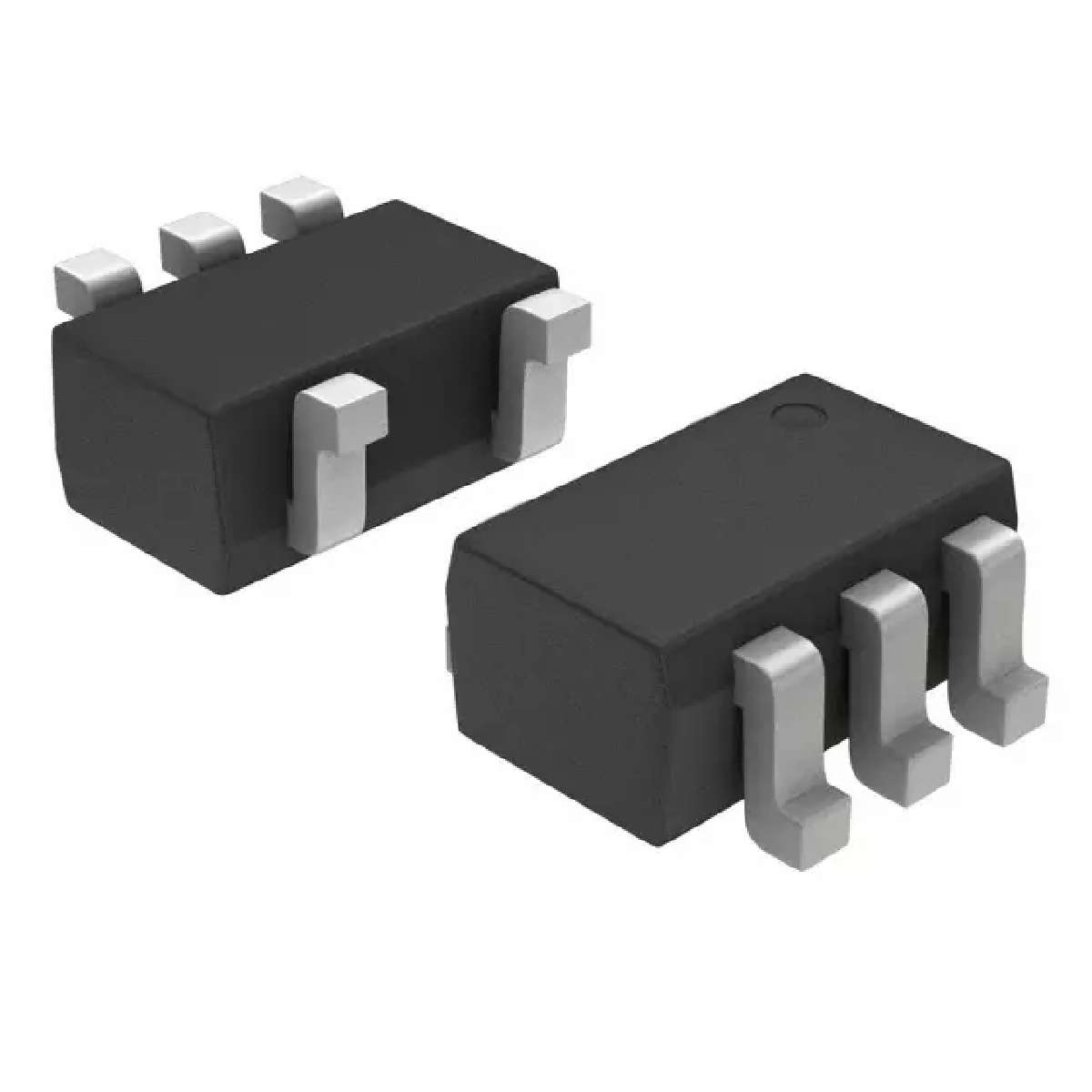

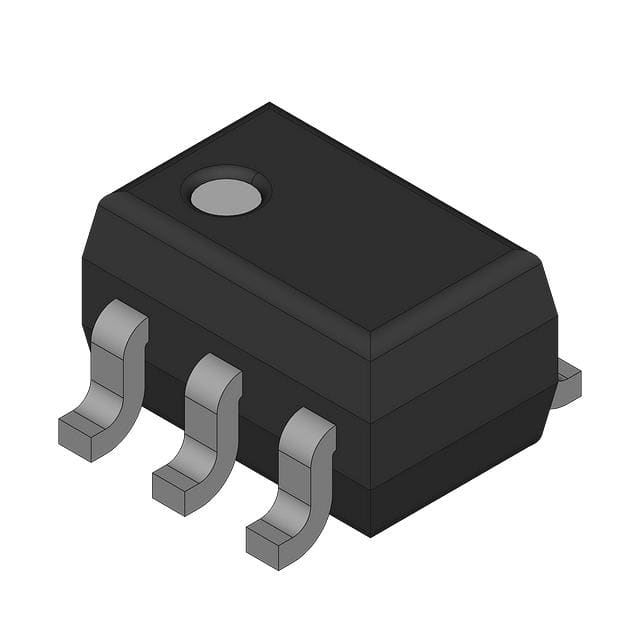

IC 与门 MC74HC1G08DFT1 SOT-353/SC-88A/SC70-5 marking/标记 H22

逻辑类型Logic Type| 与门 AND Gate \---|--- 电路数Number of Circuits| 1 输入数Number of Inputs| 2 电源电压VccVoltage - Supply| 2V~6V 静态电流IqCurrent - Quiescent Max| 1uA 输出高，低电平电流Current - Output High, Low| -2.6mA，2.6mA 低逻辑电平Logic Level - Low| 0.5V~1.8V 高逻辑电平Logic Level - High| 1.5V~4.2V 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL| 8ns @ 4.5V，50pF Description & Applications| Single 2-input AND gate；Features High Speed: tPD = 7 ns Typ @ VCC = 5 V Low Power Dissipation: ICC = 1 uA Max at TA = 25°C High Noise Immunity Balanced Propagation Delays tpLH = tpHL Symmetrical Output Impedance IOH = IOL = 2 mA Chip Complexity: FET = 44 Pb−Free Packages are Available 描述与应用| 单路双输入与门；特性 高速：TPD =7纳秒（典型值）@ VCC = 5 V 低功耗：ICC=1 UA TA= 25°C（最大值） 高抗噪声能力 平衡传输延迟（TPLH TPHL） 对称的输出阻抗（IOH= IOL= 2毫安） 芯片的复杂性：FET=44 提供无铅封装
