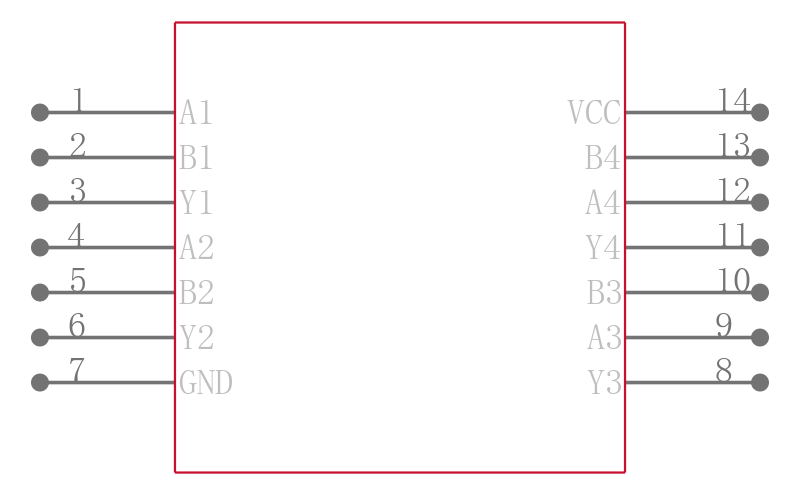

MC74VHCT08ADTR2

四2输入与门 Quad 2−Input AND Gate

Description

The MC10H104 is a quad 2−input AND gate. One of the gates has both AND/NAND outputs available. This MECL 10H™part is a functional/pinout duplication of the standard MECL 10K™family

part, with 100% improvement in propagation delay, and no increase in power−supply current.

Features

•Propagation Delay, 1.0 ns Typical

•Power Dissipation 25 mW/Gate same as MECL 10K

•Improved Noise Margin 150 mV Over Operating Voltage and Temperature Range

•Voltage Compensated

•MECL 10K Compatible

•Pb−Free Packages are Available

.
