MMQA20VT1

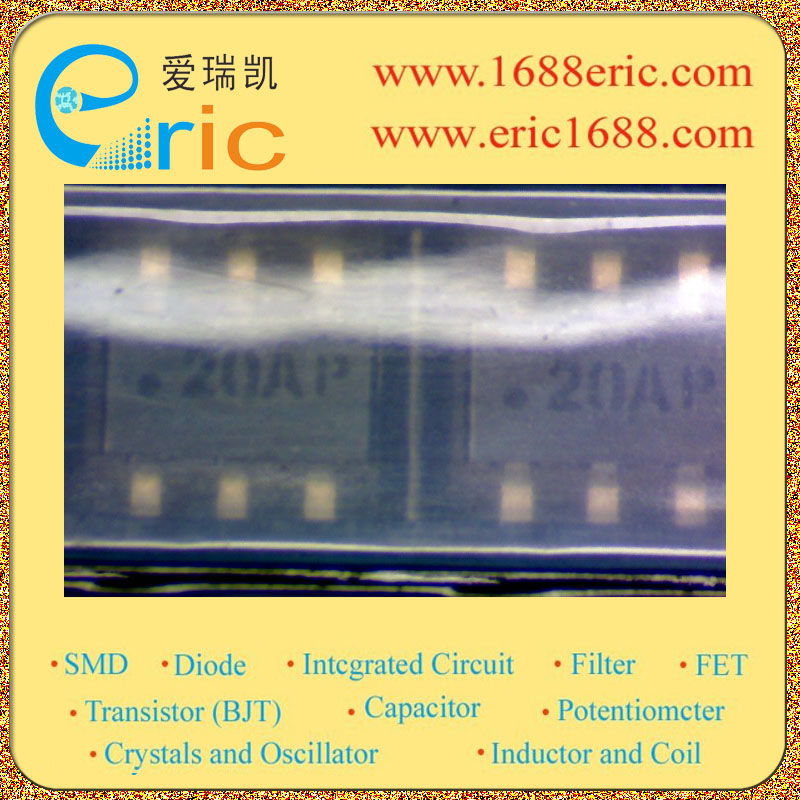

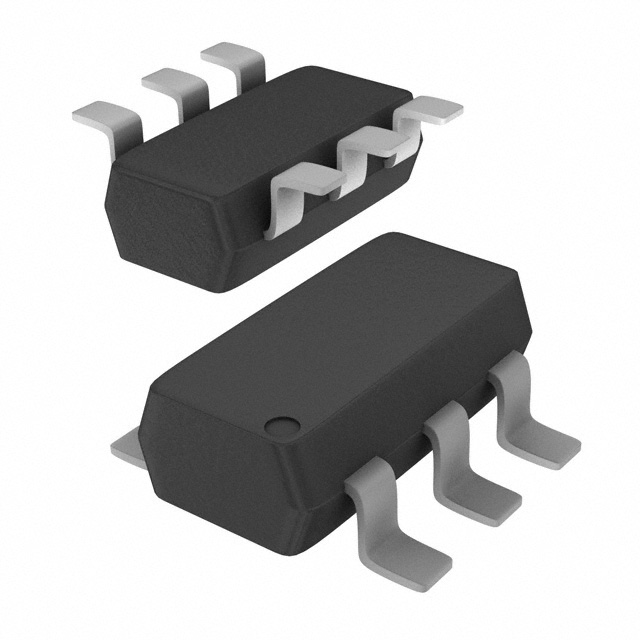

MMQA20VT1 瞬态抑制二极管TVS/ESD 15V 0.225W/225mW SOT163-20V 标记20A

极性Polarization| 单向 Unidirectional \---|--- 反向关断电压/工作电压VRWMReverse Standoff Voltage| 15V 反向击穿电压VBRBreakdown Voltage| 20V 峰值脉冲耗散功率PPPMPeak Pulse Power Dissipation| 24W 峰值脉冲电流IPPmPeak Forward Surge Current| 额定耗散功率PdPower dissipation| 0.225W/225mW Description & Applications| Specification Features • SC−74 Package Allows Four Separate Unidirectional Configurations • Peak Power − Min. 24 W @ 1.0 ms Unidirectional , • Peak Power − Min. 150 W @ 20 s Unidirectional） • Maximum Clamping Voltage @ Peak Pulse Current • Low Leakage < 2.0 uA • ESD Rating of Class N exceeding 16 kV per the Human Body Model • Pb−Free Packages are Available 描述与应用| 规格特性 •SC-74包装允许四个独立的单向配置 •峰值功率 - 最小 24 W@1.0毫秒（单向， •峰值功率 - 最小 150 W @20（单向 •最大钳位电压@峰值脉冲电流 •低漏<2.0 uA •ESD额定值N类（超过16千伏每 人体模型 •无铅包可用
