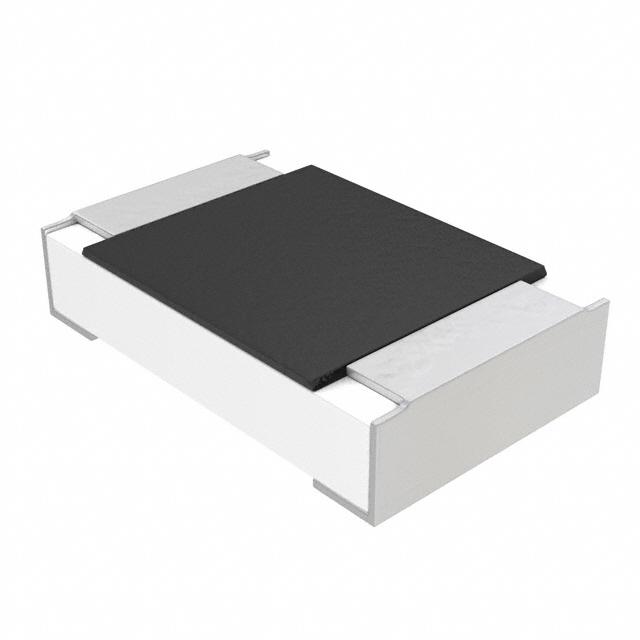

MCU08050C1001FP500

VISHAY  MCU08050C1001FP500  SMD片式电阻, 1 kohm, 150 V, 0805 [2012公制], 200 mW, ± 1%, MCU 0805 Series 新

The Vishay MCU 0805-professional series are professional thin film chip resistors. The resistance range includes E24, E96, E192 decade values from 1ohm to 10Mohm. These professional thin film flat chip resistors are the perfect choice for most fields of modern professional electronics where reliability and stability are of major concern. Typical applications include telecommunication, medical equipment, high-end computer and audio / video electronics.

.

Imperial size is 0805 and metric size code is RR2012M

.

Approved to EN 140401-801

.

Excellent overall stability is class 0.5

.

Available ±0.5%, ±1% tolerances

.

TCR of ±25ppm/K, ±50ppm/K and jumpers are also available

.

Rated dissipation of 200mW

.

Operating voltage is 150V

.

Permissible voltage against ambient is 200V

.

Operating temperature range from -55°C to 155°C
