ON SEMICONDUCTOR MC10H101PG 逻辑芯片, 门电路
The MC10H101 is a quad 2-input OR/NOR gate with one input from each gate common to pin 12. This MECL 10H part is a functional/pinout duplication of the standard MECL 10K family part, with 100% improvement in propagation delay, and no increases in power-supply current.
Features
---
|
- .
- Propagation Delay, 1.0 ns Typical
- .
- Power Dissipation 25 mW/Gate same as MECL 10K
- .
- Improved Noise Margin 150 mV Over Operating Voltage and Temperature Range
- .
- Voltage Compensated
- .
- MECL 10K-Compatible
- .
- Pb-Free Packages are Available
电源电压DC -5.46 V max, -4.94 V min
无卤素状态 Halogen Free
输出接口数 2
输出电流 50 mA
电路数 4

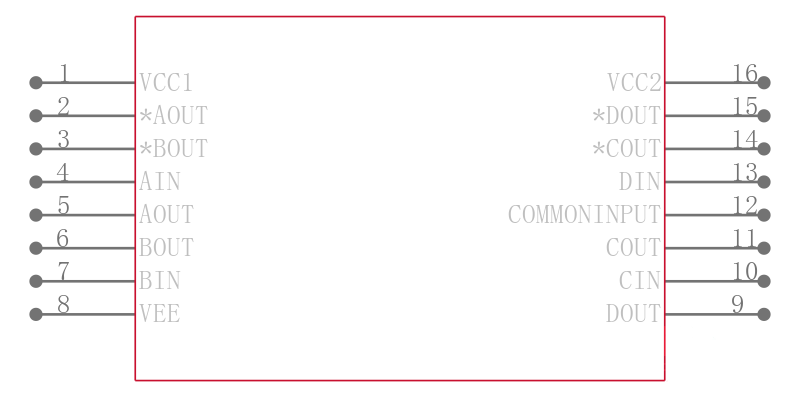

针脚数 16
逻辑门个数 4
输入数 8
工作温度Max 75 ℃
工作温度Min 0 ℃
电源电压Max 5.46 V
电源电压Min 4.94 V
安装方式 Through Hole
引脚数 16

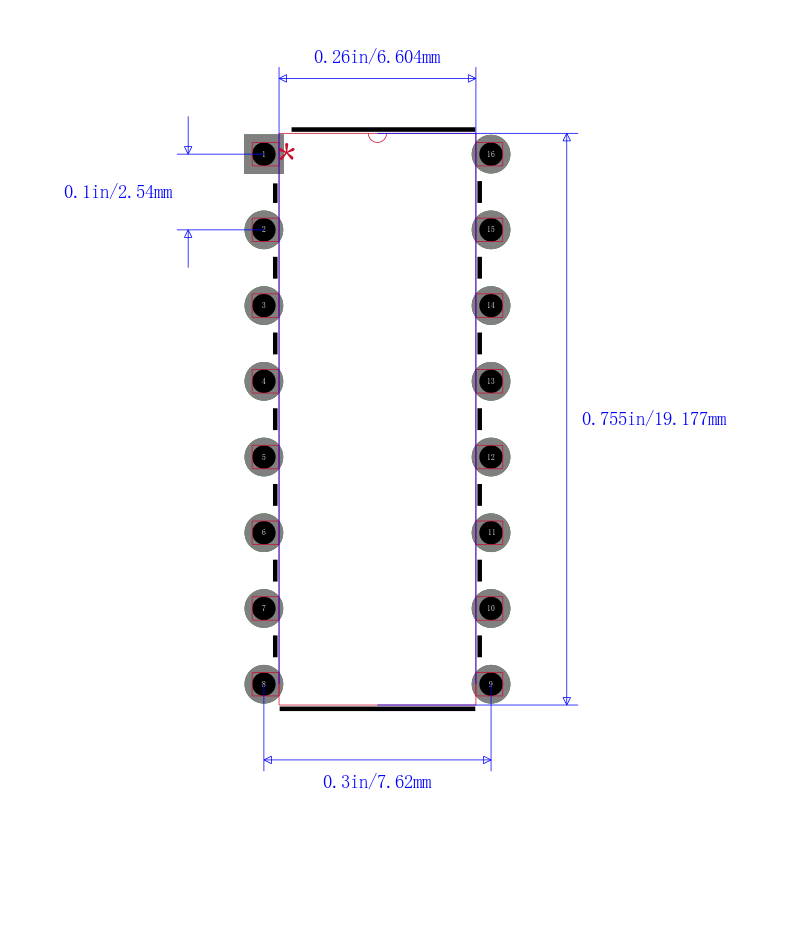

封装 DIP-16
长度 19.55 mm
宽度 6.85 mm
高度 3.43 mm
封装 DIP-16
工作温度 0℃ ~ 75℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MC10H101PG ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MC10H101FNG 安森美 | 功能相似 | MC10H101PG和MC10H101FNG的区别 |
MC10H101FNR2G 安森美 | 功能相似 | MC10H101PG和MC10H101FNR2G的区别 |
MC10H101FNR2 安森美 | 功能相似 | MC10H101PG和MC10H101FNR2的区别 |
