MAL210117473E3

VISHAY  MAL210117473E3  铝电解电容, 螺丝安装, 101 PHR-ST系列, 47000 µF, ± 20%, 40 V, 50 mm, 0.012 ohm

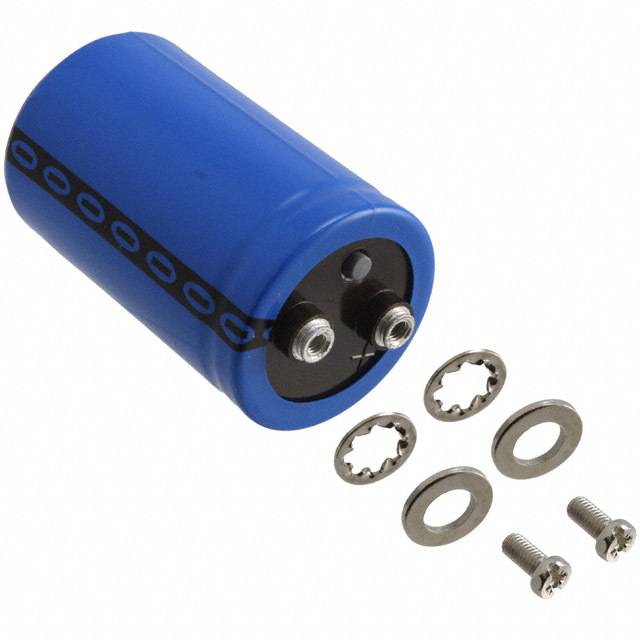

The is an Aluminum Electrolytic Capacitor with screw terminals, cylindrical aluminum case and a blue sleeve insulation. The 101 PHR-ST series electrolytic capacitor features high ripple current, pressure relief in the sealing and low ESR. Suitable for buffering and filtering.

.

Polarized aluminum electrolytic capacitors, non-solid electrolyte

.

Long useful life

.

10mR at 20kHz Maximum impedance

.

3.76mA after 5 minutes Maximum leakage current

.

14.6A at 100Hz/85°C Rated RMS ripple current
