MC100LVEL05DTR2G

3.3V ECL 2输入差分AND / NAND 3.3V ECL 2-Input Differential AND/NAND

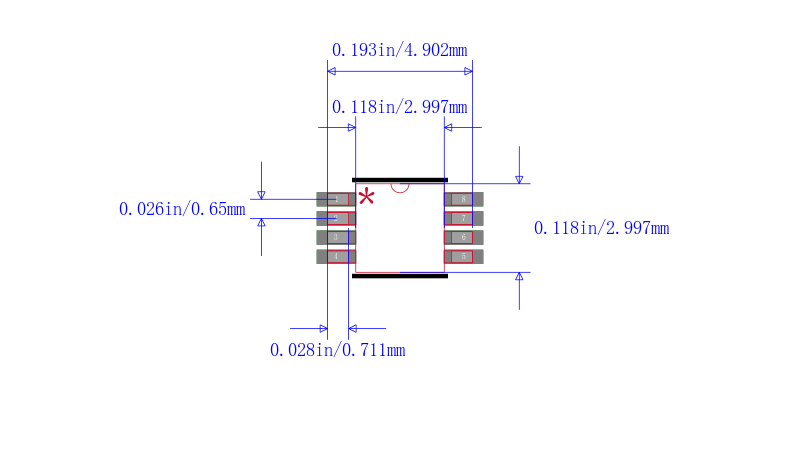

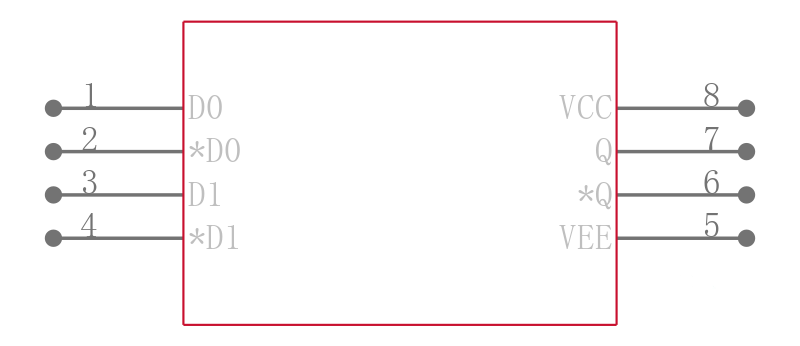

The MC100LVEL05 is a 2-input differential AND/NAND gate. The device is functionally equivalent to the MC100EL05 device and operates from a 3.3V supply voltage. With propagation delays and output transition times equivalent to the EL05, the LVEL05 is ideally suited for those applications which require the ultimate in AC performance at low voltage power supplies. Because a negative 2-input NAND is equivalent to a 2-input OR function, the differential inputs and outputs of the device allows the LVEL05 to also be used as a 2-input differential OR/NOR gate.

Features

---

 |

.

340ps Propagation Delay

.

High Bandwidth Output Transitions

.

ESD Protection: >4 KV HBM, >200 V MM

.

The 100 Series Contains Temperature Compensation

.

PECL Mode Operating Range: VCC= 3.0 V to 3.8 V with VEE= 0 V

.

NECL Mode Operating Range: VCC= 0 V with VEE= -3.0 V to -3.8 V

.

Internal Input Pulldown Resistors

.

Q Output will Default LOW with All Inputs Open or at VEE

.

Meets or Exceeds JEDEC Spec EIA/JESD78 IC Latchup Test

.

Moisture Sensitivity Level 1

For Additional Information, see Application Note AND8003/D

.

Flammability Rating: UL-94 code V-0 @ 1/8", Oxygen Index 28 to 34

.

Transistor Count = 69 devices

.

Pb-Free Packages are Available
