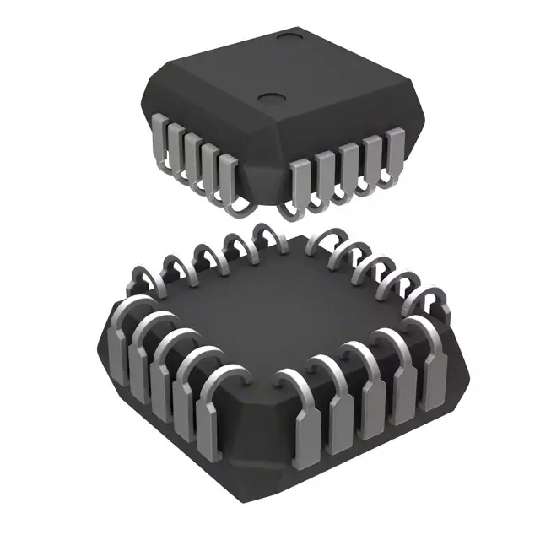

MC10H105FN

三重2-3-2输入或/或非门 Triple 2−3−2−Input OR/NOR Gate

Description

The MC10H105 is a triple 2−3−2−input OR/NOR gate. This MECL 10H™part is a functional/pinout duplication of the standard

MECL 10K™family part, with 100% improvement in propagation delay, and no increases in power−supply current.

Features

•Propagation Delay, 1.0 ns Typical

•Power Dissipation 25 mW/Gate same as MECL 10K

•Improved Noise Margin 150 mV Over Operating Voltage and

Temperature Range

•Voltage Compensated

•MECL 10K Compatible

•Pb−Free Packages are Available

.
