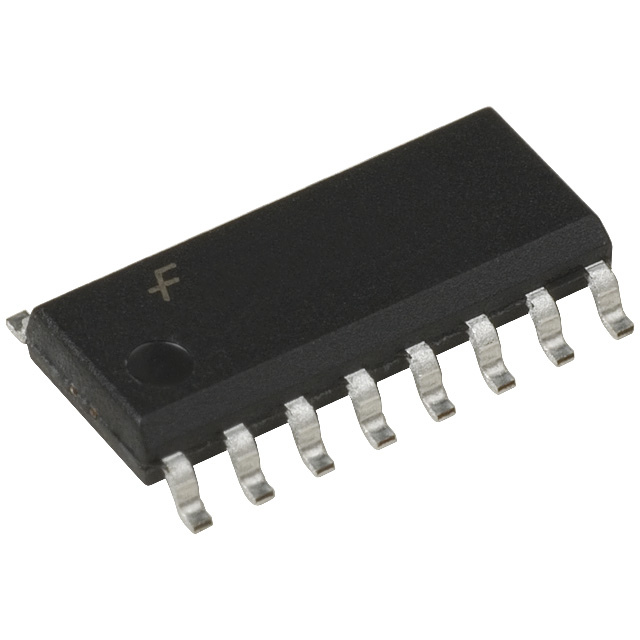

MM74HC594MX

Shift Register Single 8Bit Serial to Serial/Parallel 16Pin SOIC T/R

General Description

This high speed shift register utilizes advanced silicon-gate CMOS technology. This device possesses the high noise immunity and low power consumption of standard CMOS integrated circuits, as well as the ability to drive 15 LS-TTL loads.

Features

■Low quiescent current: 80 µA maximum

■Low input current: 1 µA maximum

■8-bit serial-in, parallel-out shift register with storage

■Wide operating voltage range: 2V to 6V

■Cascadable

■Shift register has direct clear

■Guaranteed shift frequency: DC to30 MHz
