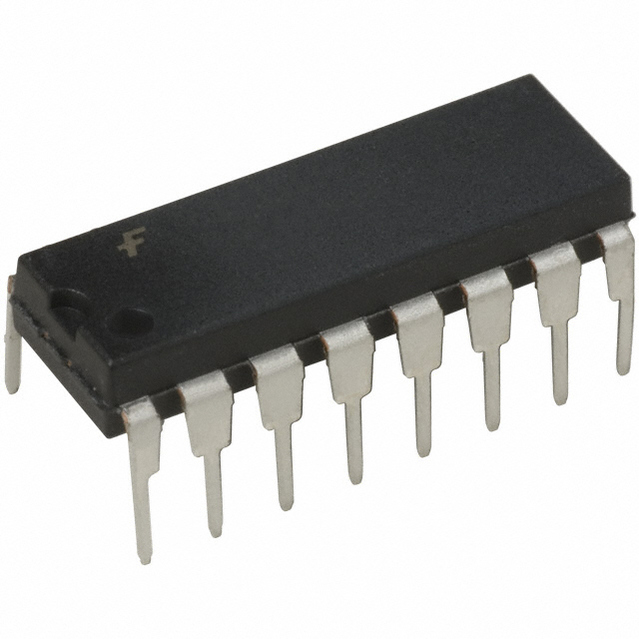

MM74HC597N图片1

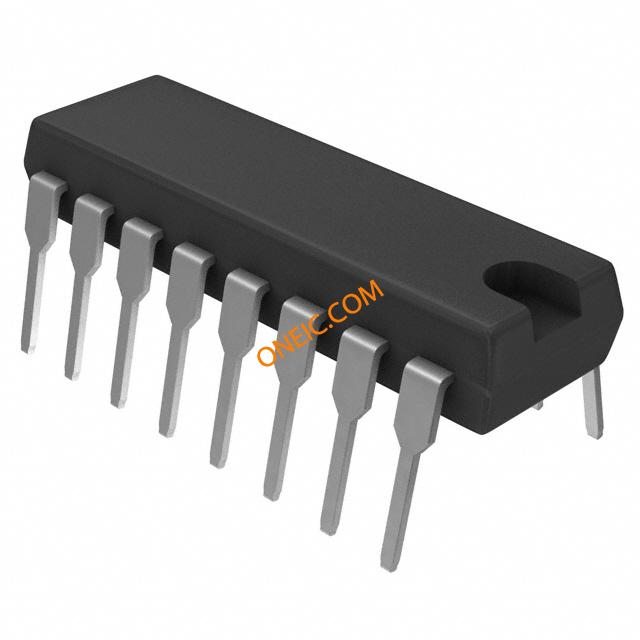

MM74HC597N图片2
MM74HC597N图片3
MM74HC597N图片4
MM74HC597N图片5
MM74HC597N图片6
MM74HC597N图片7
MM74HC597N图片8
MM74HC597N概述

8位移位寄存器通过输入锁存器 8-Bit Shift Registers with Input Latches

General Description

This high speed register utilizes advanced silicon-gate CMOS technology. It has the high noise immunity and low power consumption of standard CMOS integrated circuits, as well as the ability to drive 10 LS-TTL loads.

The MM74HC597 comes in a 16-pin package and consists of an 8-bit storage latch feeding a parallel-in, serial-out 8-bit shift register. Both the storage register and shift register have positive-edge triggered clocks. the shift register also has direct load from storage and clear inputs.

The 74HC logic family is speed, function, and pin-out compatible with the standard 74LS logic family. All inputs are protected from damage due to static discharge by internal diode clamps to VCC and ground.

Features

■ 8-bit parallel storage register inputs

■ Wide operating voltage range: 2V–6V

■ Shift register has direct overriding load and clear

■ Guaranteed shift frequency: DC to 30 MHz

■ Low quiescent current: 80 µA maximum

MM74HC597N中文资料参数规格
技术参数

电源电压DC 5.00 V, 6.00 V max

电路数 1

位数 8

工作温度Max 85 ℃

工作温度Min -40 ℃

电源电压 2V ~ 6V

封装参数

安装方式 Through Hole

引脚数 16

封装 DIP-16

外形尺寸

宽度 6.35 mm

封装 DIP-16

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Unknown

包装方式 Tube

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买MM74HC597N
型号: MM74HC597N
制造商: Fairchild 飞兆/仙童
描述:8位移位寄存器通过输入锁存器 8-Bit Shift Registers with Input Latches
