固定电感器
固定器
得捷:
FIXED IND 100NH 100MA 2.2OHM SMD
立创商城:
100nH ±5% 1.6Ω
艾睿:

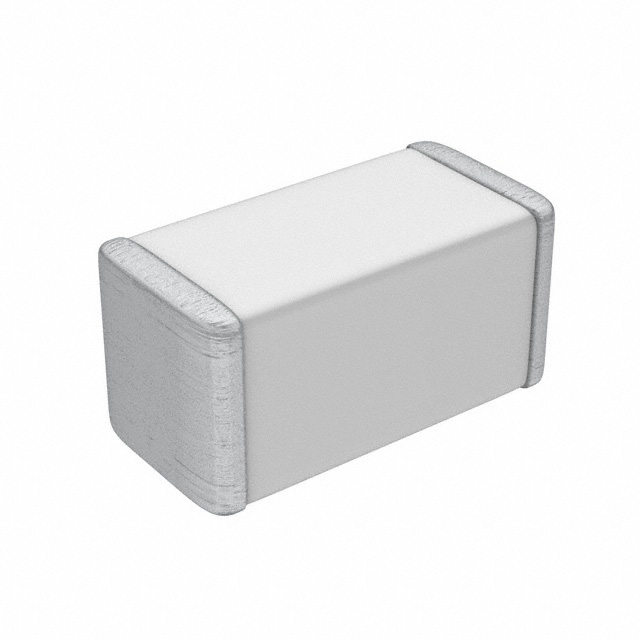

This rf chip MLK1005SR10JT000 surface mount inductor from TDK is placed on the surface of a PCB during surface mount manufacturing processing. This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This SMD inductor has a maximum DC current of 100m A with a maximum resistance of 2.2 Ohm. It has a tolerance of 5%. It has an inductance of 100n H. This device is made with multi-layer technology. This product is 1.1 mm long, 0.6 mm tall and 0.6 mm deep. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 1.1G Hz.
安富利:
Ind RF Chip Unshielded Multi-Layer 100nH 5% 100MHz 6Q-Factor Ceramic 100mA 0402 T/R
Verical:
Inductor RF Chip Unshielded Multi-Layer 0.1uH 5% 100MHz 6Q-Factor Ceramic 0.1A 2.2Ohm DCR 0402 T/R
MASTER:
Inductor RF Chip Unshielded Multi-Layer 100nH 5% 100MHz 6Q-Factor Ceramic 100mA 2.2Ohm DCR 0402 T/R
Electro Sonic:
Inductor RF Chip Unshielded Multi-Layer 100nH 5% 100MHz 6Q-Factor Ceramic 100mA 2.2Ohm DCR 0402 T/R
Win Source:
100nH Unshielded Multilayer Inductor 100mA 2.2 Ohm Max 0402 1005 Metric
额定电流 100 mA
容差 ±5 %
电感 100 nH
自谐频率 1.1 GHz
Q值 6.0
产品系列 MLK
电感公差 ±5 %
测试频率 100 MHz
电阻DC) 2.2 Ω
工作温度Max 125 ℃
工作温度Min -55 ℃
精度 ±5 %
电阻DC Max 2.2 Ω
安装方式 Surface Mount
封装公制 1005
封装 0402
长度 1 mm
宽度 0.5 mm
高度 0.6 mm
封装公制 1005
封装 0402
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Commercial Grade
RoHS标准 RoHS Compliant
含铅标准 Lead Free
