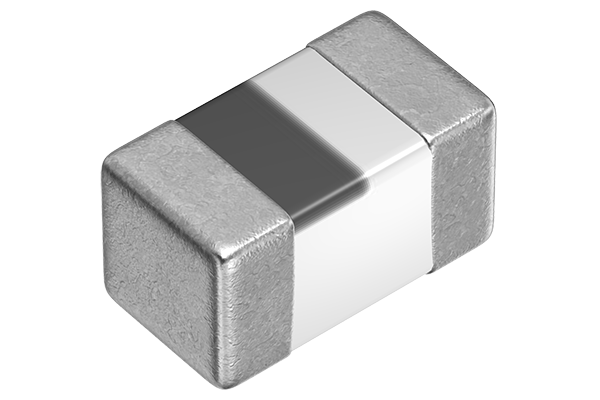

MLG1005S13NJT000

13nH ±5% 400mA 编带

13 nH 无屏蔽 多层 器 400 mA 500 毫欧最大 0402（1005 公制）

得捷:
FIXED IND 13NH 400MA 500MOHM SMD

立创商城:
13nH ±5% 260mΩ

艾睿:
Use this high frequency chip MLG1005S13NJT000 surface mount inductor from TDK to make any circuit look clean and compact. This SMD inductor has an operating temperature range of -55 °C to 125 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This product is 1.05 mm long, 0.55 mm tall and 0.55 mm deep. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 2.4G Hz. It has an inductance of 13n H. It has a tolerance of 5%. This SMD inductor has a maximum DC current of 400m A with a maximum resistance of 500m Ohm. This device utilizes multi-layer technology.

安富利:
MLG1005S13NJT000

Verical:
Inductor High Frequency Chip Unshielded Multi-Layer 0.013uH 5% 100MHz 8Q-Factor Ceramic 0.4A 0.5Ohm DCR 0402 T/R

Electro Sonic:
Inductor High Frequency Chip Unshielded Multi-Layer 13nH 5% 100MHz 8Q-Factor Ceramic 400mA 500mOhm DCR 0402 T/R

Win Source:
FIXED IND 13NH 400MA 500MOHM SMD / 13 nH Unshielded Multilayer Inductor 400 mA 500mOhm Max 0402 1005 Metric
