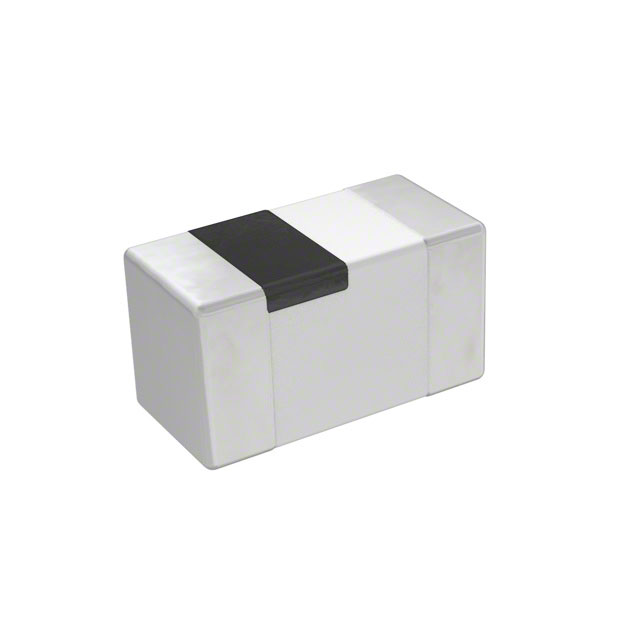

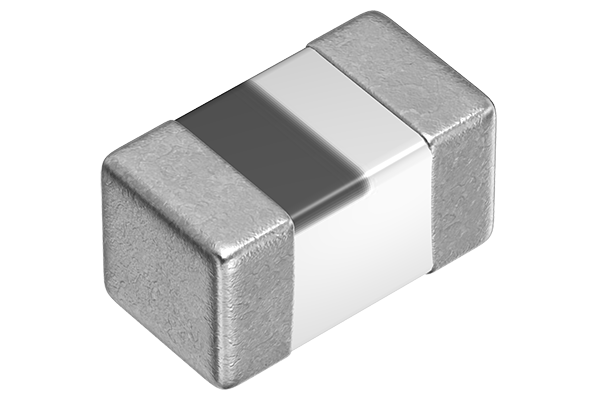

MLG1005SR15JT000

贴片高频电感

固定器

得捷:
FIXED IND 150NH 150MA 3.5OHM SMD

立创商城:
150nH ±5% 2.44Ω

贸泽:
Fixed Inductors .15 UH 5%

艾睿:
Save valuable space on a PCB with this high frequency chip MLG1005SR15JT000 surface mount inductor from TDK. This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. It has a tolerance of 5%. This device is made with multi-layer technology. This product is 1.05 mm long, 0.55 mm tall and 0.55 mm deep. This SMD inductor has a maximum DC current of 150m A with a maximum resistance of 3.5 Ohm. It has an inductance of 150n H. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 550M Hz.

安富利:
MLG1005SR15JT000

Verical:
Inductor High Frequency Chip Unshielded Multi-Layer 0.15uH 5% 100MHz 8Q-Factor Ceramic 0.15A 3.5Ohm DCR 0402 T/R

Electro Sonic:
Inductor High Frequency Chip Unshielded Multi-Layer 150nH 5% 100MHz 8Q-Factor Ceramic 150mA 3.5Ohm DCR 0402 T/R

Win Source:
FIXED IND 150NH 150MA 3.5 OHM
