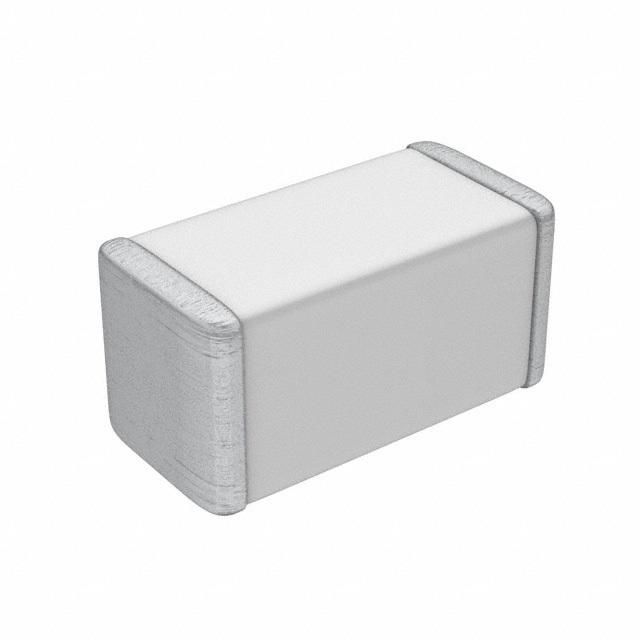

MLK1005S1N5ST000

0402

值Inductance| 1.5nH \---|--- 误差Tolerance| ±0.3nH 额定电流Current Rating| 500mA 饱和电流Current - Saturation| 不同频率时的Q值Q @ Frequency| 6 @ 100MHz 自振谐频率SRFFrequency - Self Resonant| 9.5GHz DC电阻DCRDC Resistance DCR| 0.15Ω/Ohm 屏蔽Shielding| 无屏蔽 Unshielded Description & Applications| MLK Series MLK1005 FEATURES • Inductance values are supported from 1 to 100nH. • With the adoption of a giga-spiral laminated structure, self-resonant frequency higher than that of the MLG structure can be obtained, while the decrease of Q in the GHz band is limited. • Advanced monolithic structure is formed using a multilayering and sintering process with ceramic and conductive materials for high-frequency. • There is no directivity. • The products contain no lead and also support lead-free soldering. • It is a product conforming to RoHS directive. 描述与应用| MLK系列MLK1005 特点 电感值从1到100nH。 产品中不含铅，支持无铅焊接。 它是一个符合RoHS指令产品。
