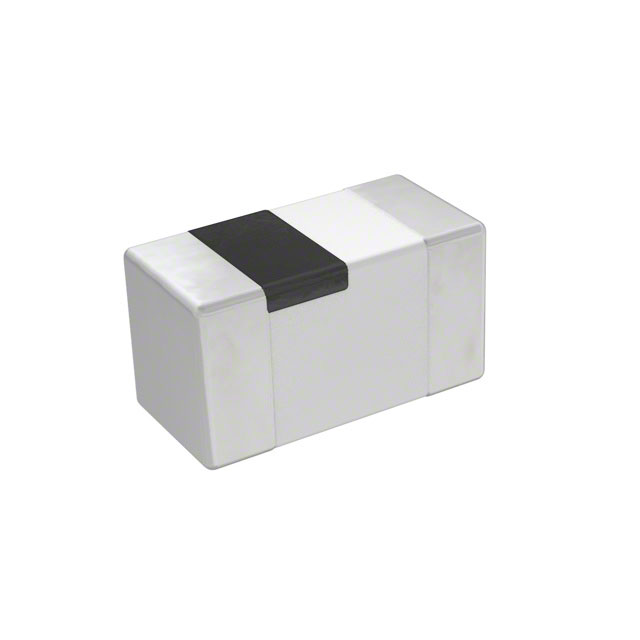

MLG1005S1N6ST000

MLG 系列 0402 1.6 nH 5% 1000 mA SMD 高频 屏蔽 多层电感

固定器

立创商城:
1.6nH ±0.3nH 50mΩ

得捷:
FIXED IND 1.6NH 1A 120 MOHM SMD

艾睿:
This high frequency chip MLG1005S1N6ST000 surface mount inductor from TDK is placed on the surface of a PCB during surface mount manufacturing processing. This SMD inductor has an operating temperature range of -55 °C to 125 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This device utilizes multi-layer technology. It has an inductance of 1.6n H. This SMD inductor has a maximum DC current of 1 A with a maximum resistance of 120m Ohm. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 7.5G Hz. This product is 1.05 mm long, 0.55 mm tall and 0.55 mm deep.

安富利:
MLG1005S1N6ST000

Verical:
Inductor High Frequency Chip Unshielded Multi-Layer 0.0016uH 0.3nH 100MHz 7Q-Factor Ceramic 1A 0.12Ohm DCR 0402 T/R

Electro Sonic:
Inductor High Frequency Chip Unshielded Multi-Layer 1.6nH 0.3nH 100MHz 7Q-Factor Ceramic 1A 120mOhm DCR 0402 T/R

Win Source:
FIXED IND 1.6NH 1A 120 MOHM SMD
