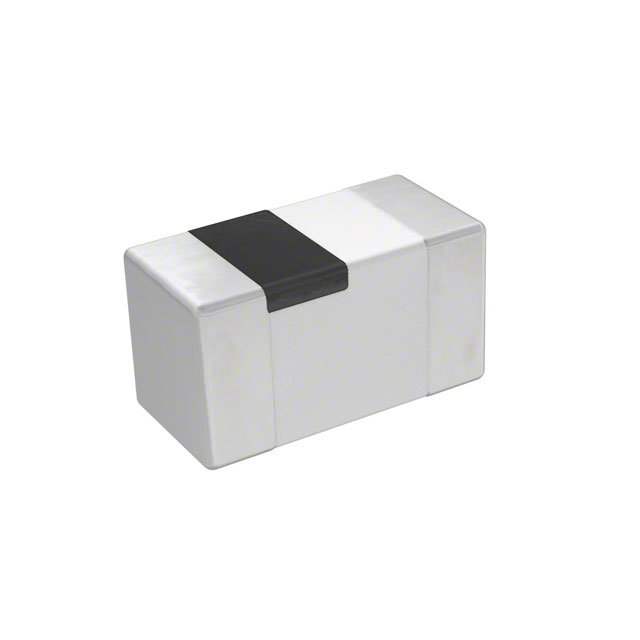

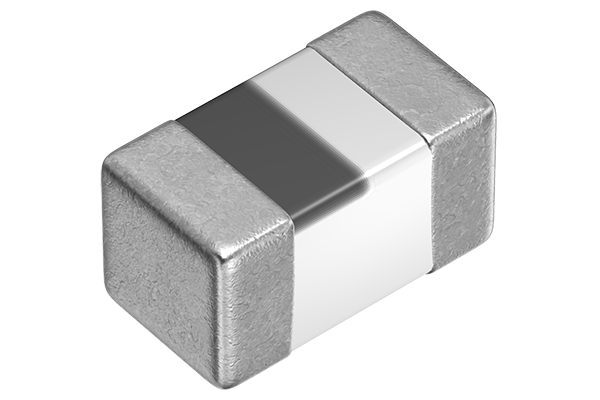

MLG1005S2N2ST000

固定电感器

固定器

得捷:
FIXED IND 2.2NH 900MA 150MOHM SM

立创商城:
2.2nH ±0.3nH 80mΩ

艾睿:
Is space on a PCB a limiting factor for your electronic circuit design? Then use this high frequency chip MLG1005S2N2ST000 surface mount inductor from TDK to save valuable space. This SMD inductor has an operating temperature range of -55 °C to 125 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This device utilizes multi-layer technology. It has an inductance of 2.2n H. This SMD inductor has a maximum DC current of 900m A with a maximum resistance of 150m Ohm. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 7G Hz. This product is 1.05 mm long, 0.55 mm tall and 0.55 mm deep.

Verical:
Inductor High Frequency Chip Unshielded Multi-Layer 0.0022uH 0.3nH 100MHz 7Q-Factor Ceramic 0.9A 0.15Ohm DCR 0402 T/R

Electro Sonic:
Inductor High Frequency Chip Unshielded Multi-Layer 2.2nH 0.3nH 100MHz 7Q-Factor Ceramic 900mA 150mOhm DCR 0402 T/R

Win Source:
2.2nH Unshielded Multilayer Inductor 900mA 150 mOhm Max 0402 1005 Metric
