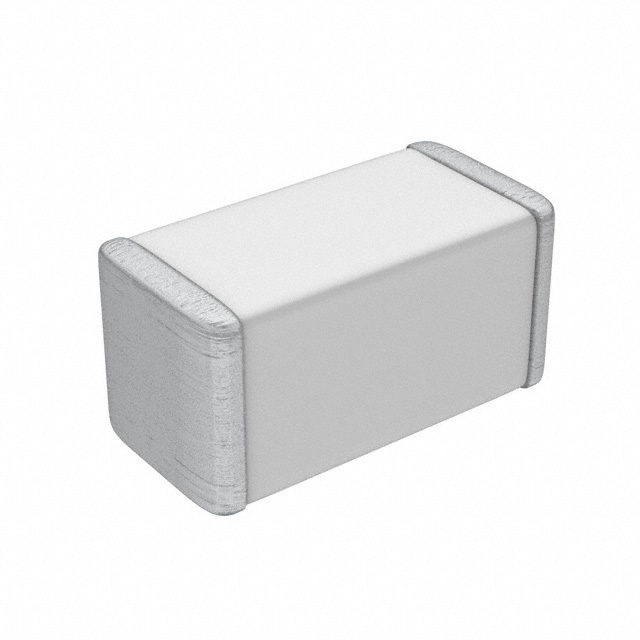

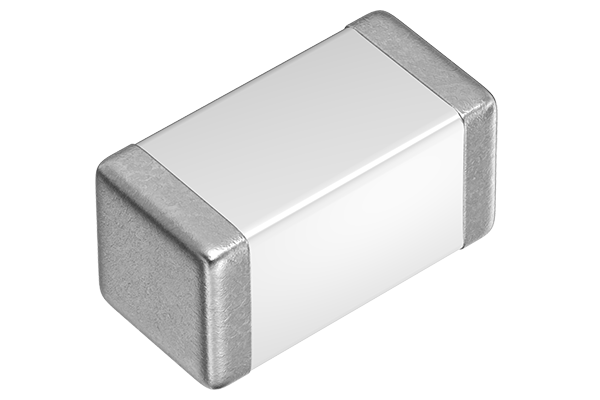

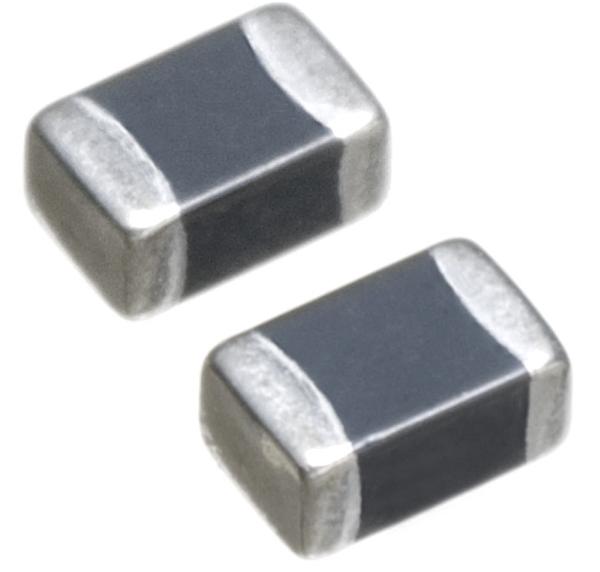

MLK1005S33NJT000

固定电感器

固定器

得捷:
FIXED IND 33NH 200MA 900MOHM SMD

立创商城:
33nH ±5% 590mΩ

贸泽:
Fixed Inductors 33 NH 5%

艾睿:
This rf chip MLK1005S33NJT000 surface mount inductor from TDK is placed on the surface of a PCB during surface mount manufacturing processing. This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This device is made with multi-layer technology. It has a tolerance of 5%. This SMD inductor has a maximum DC current of 200m A with a maximum resistance of 900m Ohm. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 2.5G Hz. This product is 1.1 mm long, 0.6 mm tall and 0.6 mm deep. It has an inductance of 33n H.

安富利:
Ind RF Chip Unshielded Multi-Layer 33nH 5% 100MHz 7Q-Factor 200mA 0402 Punched Paper T/R

Verical:
Inductor RF Chip Unshielded Multi-Layer 0.033uH 5% 100MHz 7Q-Factor Ceramic 0.2A 0.9Ohm DCR 0402 T/R

Electro Sonic:
Inductor RF Chip Unshielded Multi-Layer 33nH 5% 100MHz 7Q-Factor Ceramic 200mA 900mOhm DCR 0402 T/R

Win Source:
33nH Unshielded Multilayer Inductor 200mA 900 mOhm Max 0402 1005 Metric
