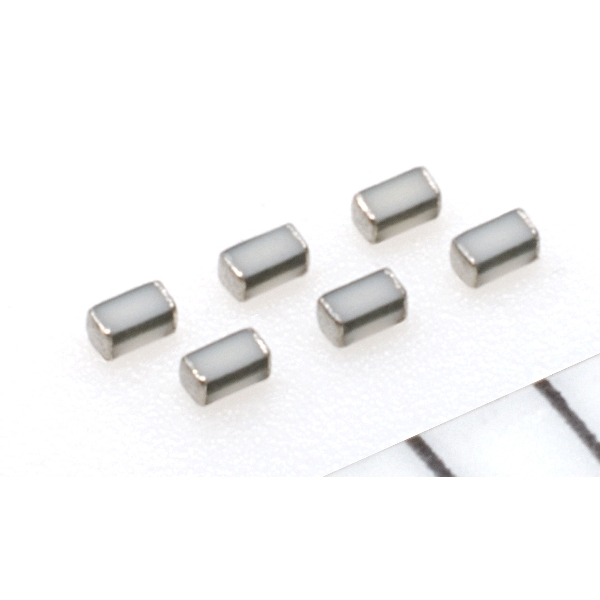

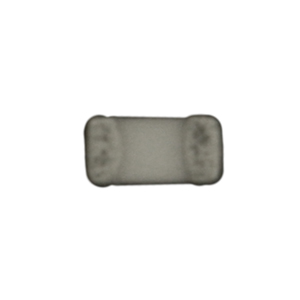

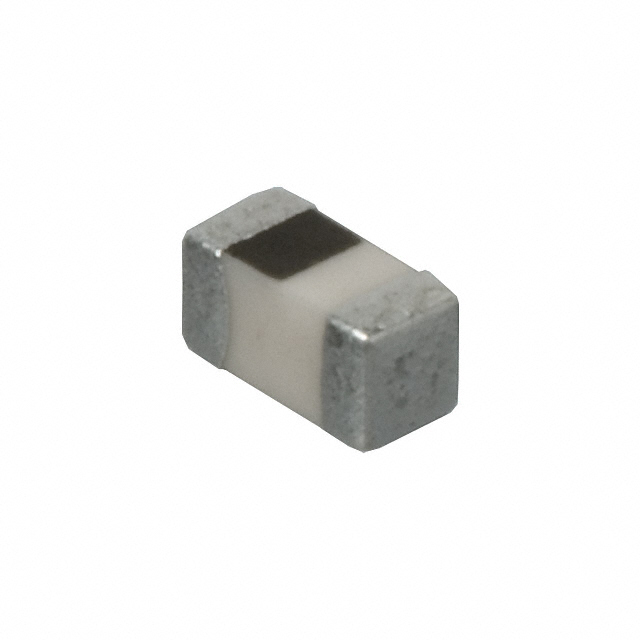

MLG1005S18NJ

MLG 系列 0402 18 nH ±5 % 350 mA 表面贴装 高频 多层电感

Inductor High Frequency Chip Unshielded Multi-Layer 18nH 5% 100MHz 8Q-Factor Ceramic 350mA 600mOhm DCR 0402 T/R

艾睿:
This high frequency chip MLG1005S18NJ surface mount inductor from TDK is ideal for saving valuable space on a PCB. This SMD inductor has an operating temperature range of -55 °C to 125 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 2G Hz. This device utilizes multi-layer technology. It has an inductance of 18n H. This SMD inductor has a maximum DC current of 350m A with a maximum resistance of 600m Ohm. It has a tolerance of 5%. This product is 1.05 mm long, 0.55 mm tall and 0.55 mm deep.

Chip1Stop:
Ind High Frequency Multi-Layer 18nH 5% 100MHz 8Q-Factor 350mA 0402

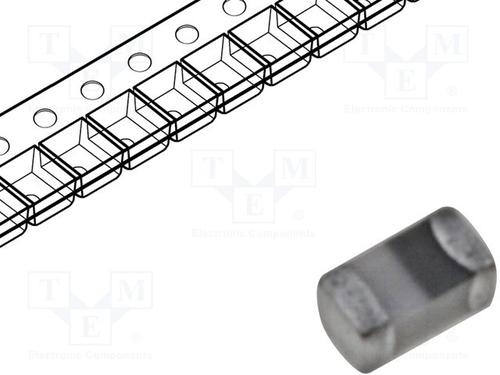

TME:
Inductor: ceramic; SMD; 0402; 18nH; 350mA; 400mΩ; Q:8; ftest:100MHz

Verical:
Inductor High Frequency Chip Unshielded Multi-Layer 0.018uH 5% 100MHz 8Q-Factor Ceramic 0.35A 0.6Ohm DCR 0402 T/R

MASTER:
Inductor High Frequency Chip Unshielded Multi-Layer 18nH 5% 100MHz 8Q-Factor Ceramic 350mA 600mOhm DCR 0402 T/R

Electro Sonic:
Inductor High Frequency Chip Unshielded Multi-Layer 18nH 5% 100MHz 8Q-Factor Ceramic 350mA 600mOhm DCR 0402 T/R
