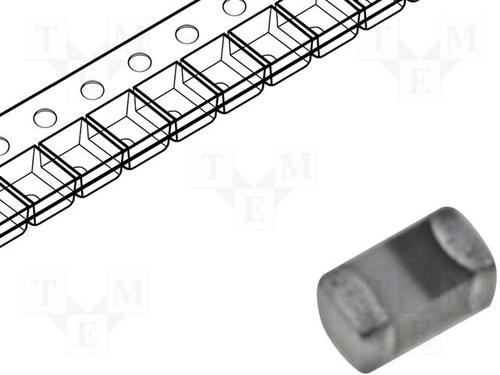

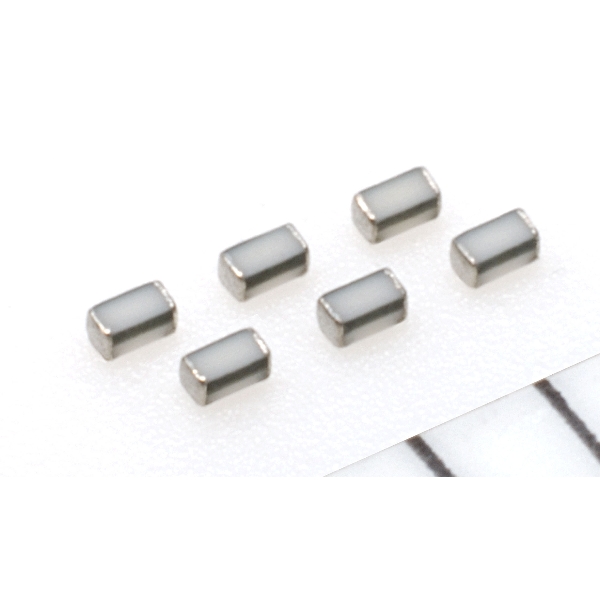

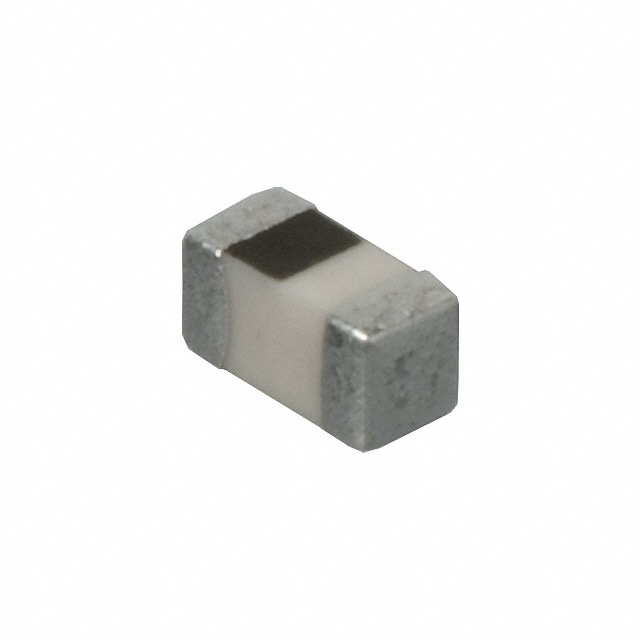

MLG1005S82NJ

MLG 系列 0402 82 nH 5 % 200 mAmps SMD 高频 多层 电感

Inductor High Frequency Chip Unshielded Multi-Layer 82nH 5% 100MHz 8Q-Factor Ceramic 200mA 1.6Ohm DCR 0402 T/R

艾睿:
Use this high frequency chip MLG1005S82NJ surface mount inductor from TDK to make any circuit look clean and compact. This SMD inductor has an operating temperature range of -55 °C to 125 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 700M Hz. This SMD inductor has a maximum DC current of 200m A with a maximum resistance of 1.6 Ohm. It has a tolerance of 5%. This device utilizes multi-layer technology. This product is 1.05 mm long, 0.55 mm tall and 0.55 mm deep. It has an inductance of 82n H.

Chip1Stop:
Ind High Frequency Chip Unshielded Multi-Layer 82nH 5% 100MHz 8Q-Factor Ceramic 200mA 0402

TME:
Inductor: ceramic; 82nH; 0402; 200mA; 1.01Ω; SMD; ±5%; -55÷125°C

Verical:
Inductor High Frequency Chip Unshielded Multi-Layer 0.082uH 5% 100MHz 8Q-Factor Ceramic 0.2A 1.6Ohm DCR 0402 T/R

MASTER:
Inductor High Frequency Chip Unshielded Multi-Layer 82nH 5% 100MHz 8Q-Factor Ceramic 200mA 1.6Ohm DCR 0402 T/R

Electro Sonic:
Inductor High Frequency Chip Unshielded Multi-Layer 82nH 5% 100MHz 8Q-Factor Ceramic 200mA 1.6Ohm DCR 0402 T/R
